October 31, 2020 | Niels Laan | Qubino, Built-in switches, Sirens

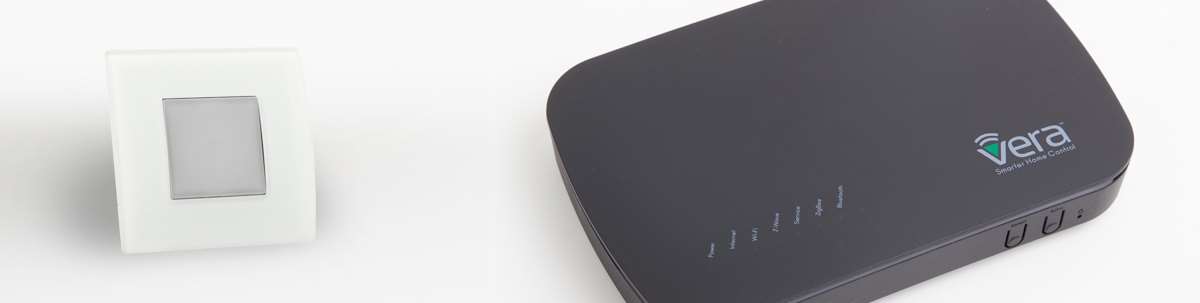

Qubino Luxy Smart Light

Installation via the Vera Plus:

The next controller is the Vera Plus. We will first determine where we want to install the switch. If you are going to replace an existing switch, you must provide a blue (N) wire and that the flush-mounted box is 50mm deep. Of course this also applies to a new flush-mounted box, but then I would personally choose a 60mm.

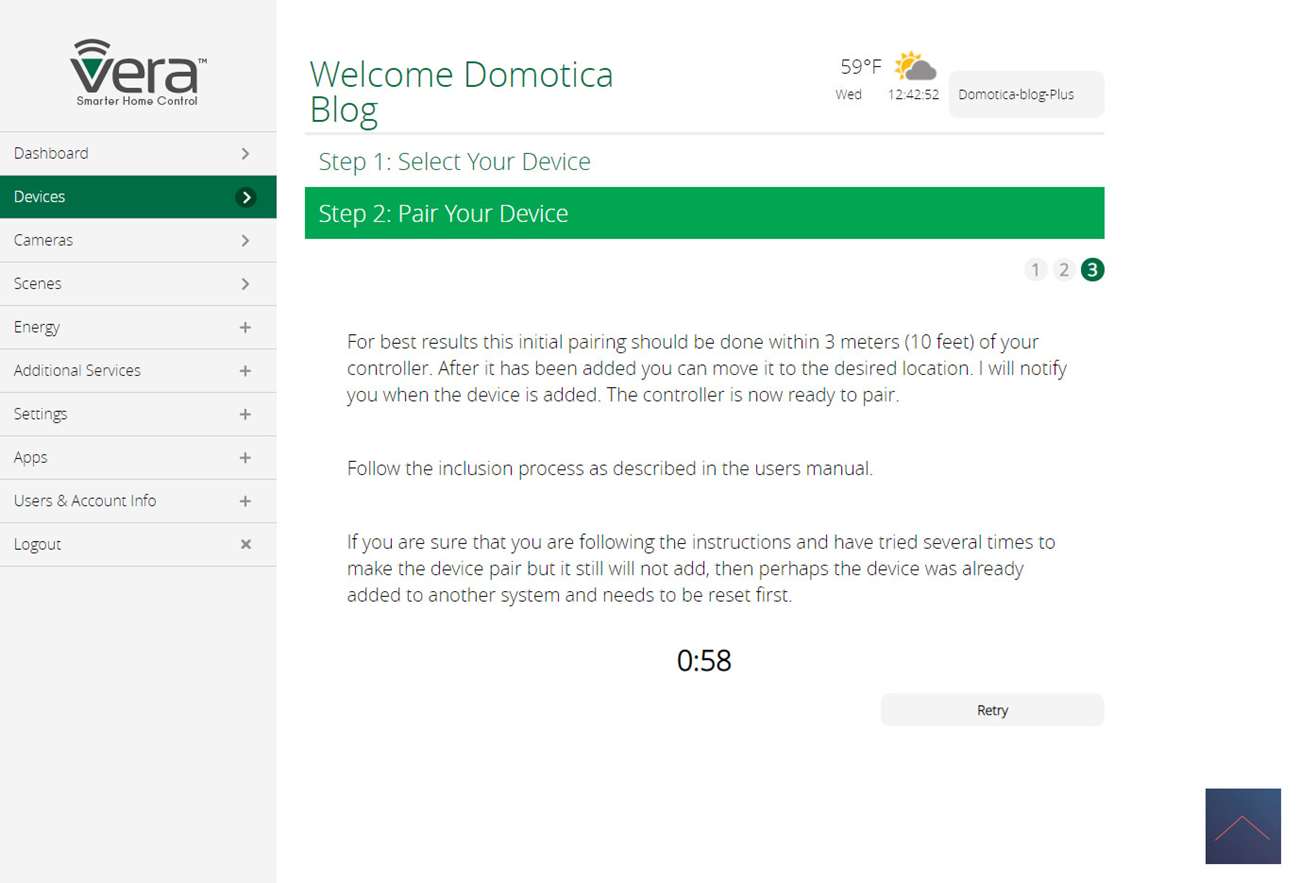

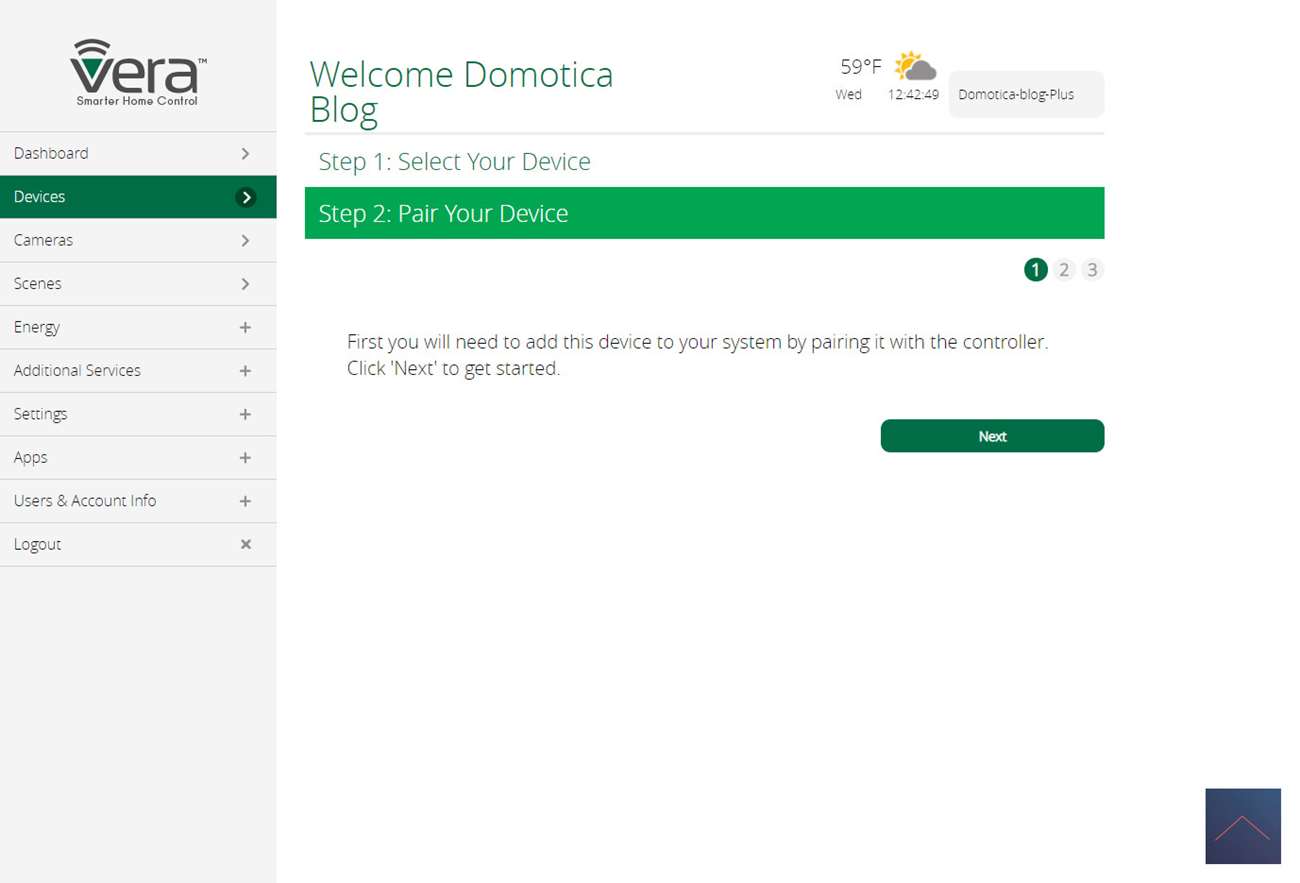

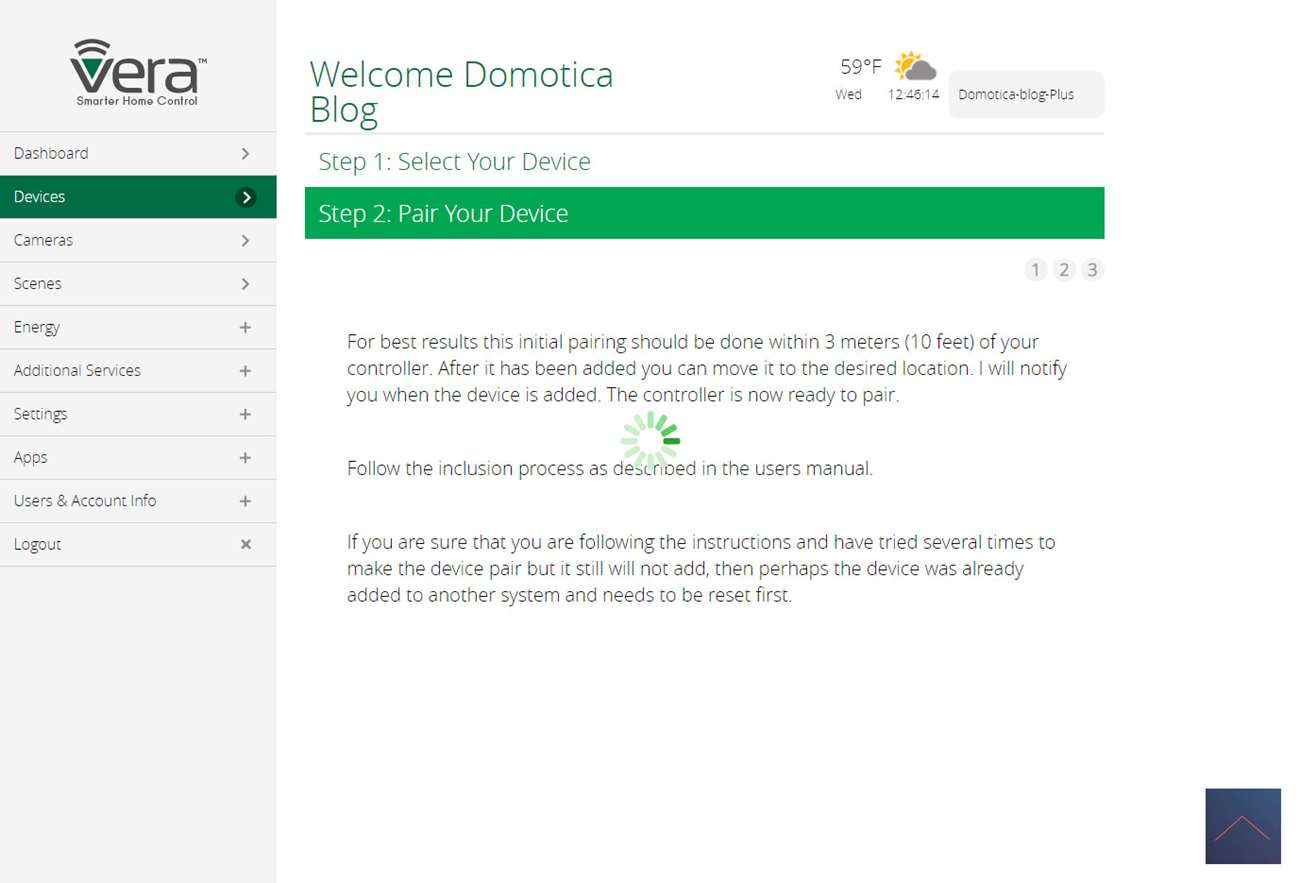

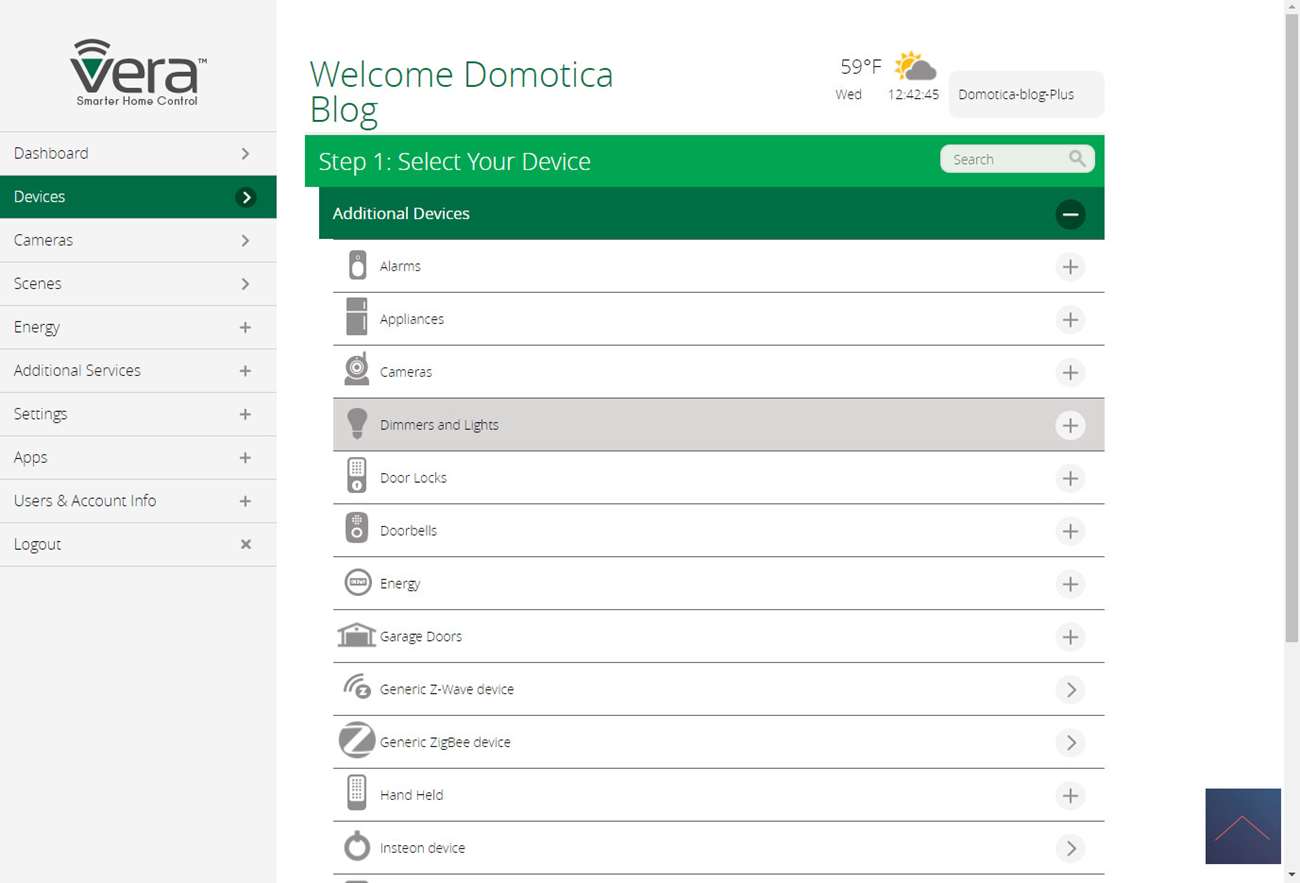

You can connect the whole via the supplied schematic. Of course, make sure you turn the power off before getting started. When you have supplied power again, you can start adding to the Vera. You can do this by logging in and going to your devices. Then click on "add device" and click on "generic z-wave" because if you search for Luxy it is not in the list. Then press next a few times until you get to the screen that asks you to put the Luxy into learning mode.

You can put the Luxy in learning mode by first clicking on the right (2) and then pressing the bottom button. The switch will now go into "white mode", now we can keep the right button pressed (4 to 9 sec). When you release it, the LED will light up green to indicate it is busy.

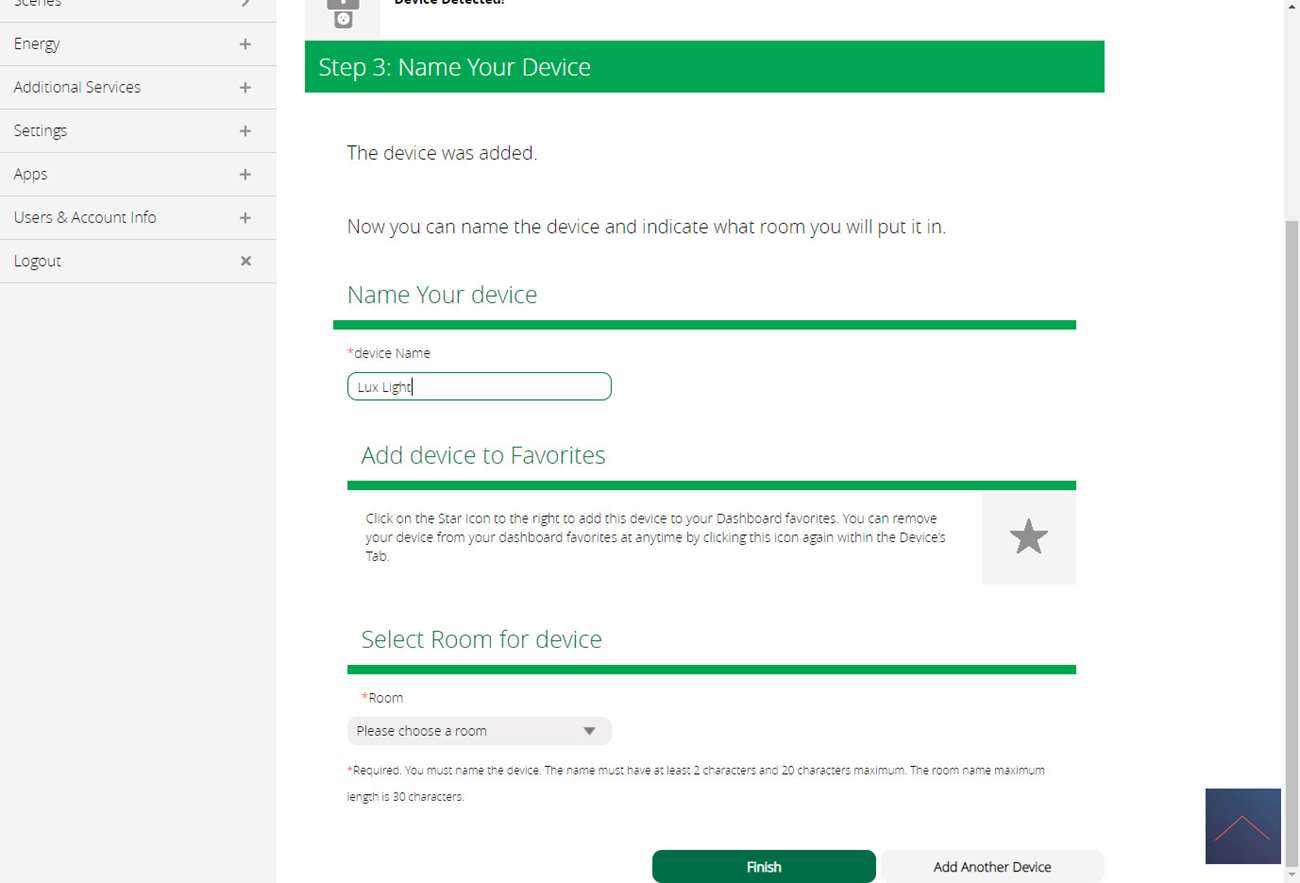

He was indeed added. Unfortunately I only see a dimmer and an on/off switch with my devices. Fortunately, you can change the device description with a trick.

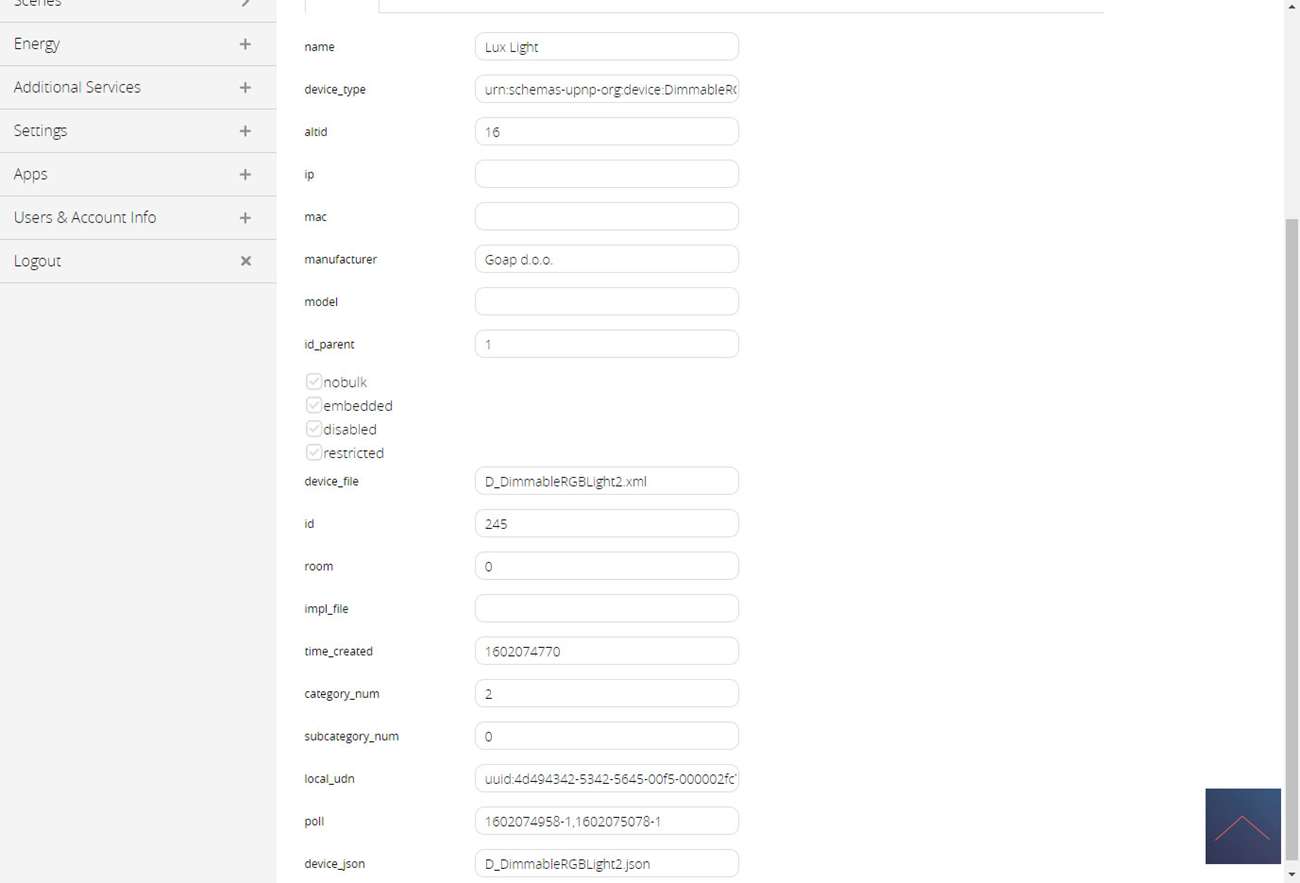

Enter the details below:

device_type: urn: schemas-upnp-org: device: DimmableRGBLight: 2
altid: 16

device_file: D_DimmableRGBLight2.xml
device_json: D_DimmableRGBLight2.json


Now I see an RGB switch with of course also a dimmer and on / off switch. Unfortunately I can't do anything with the alarm and the beeper.

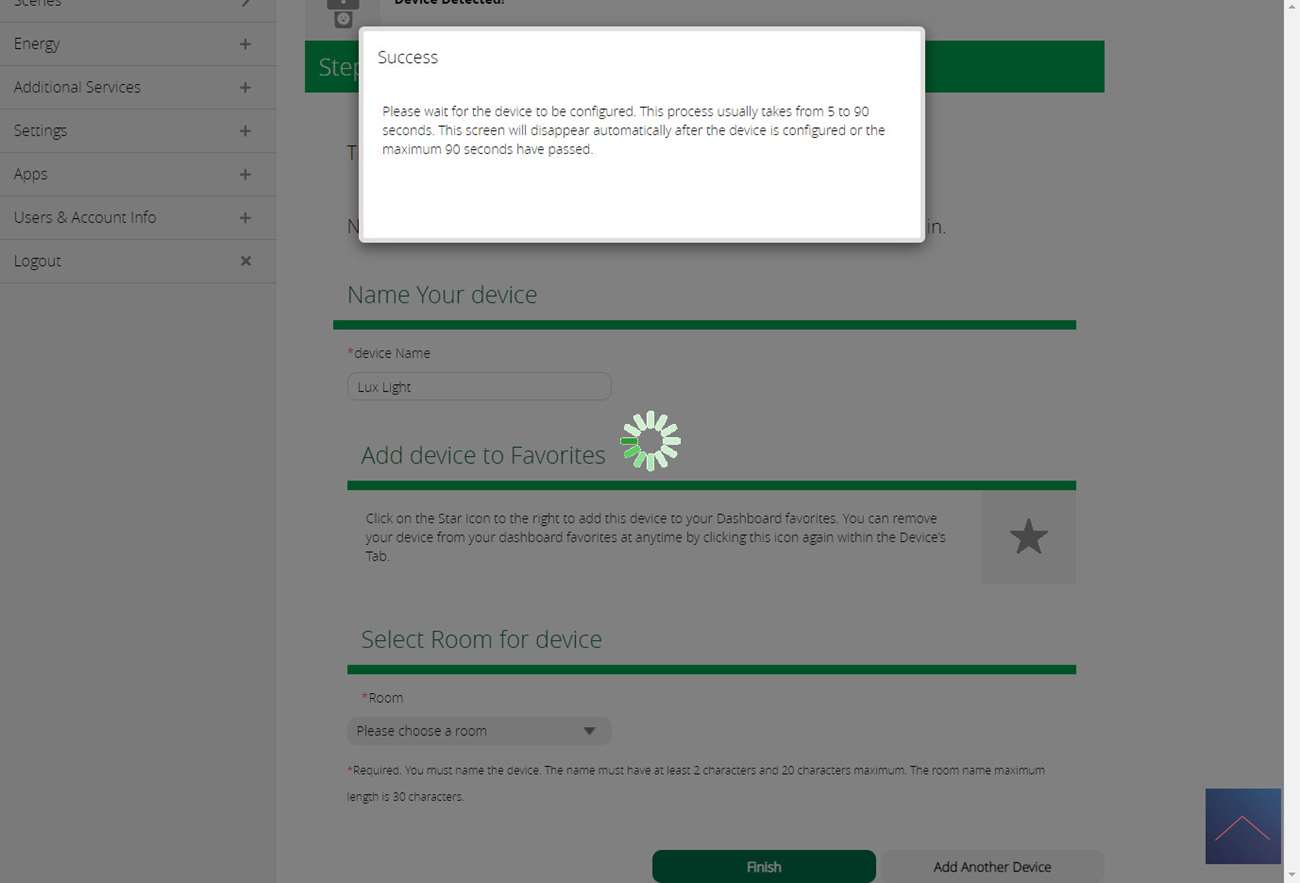

Installation screens:

Configuration:

Control:

Unfortunately I cannot operate the buzzer, but fortunately the LED can (on/off, dimming and the color).

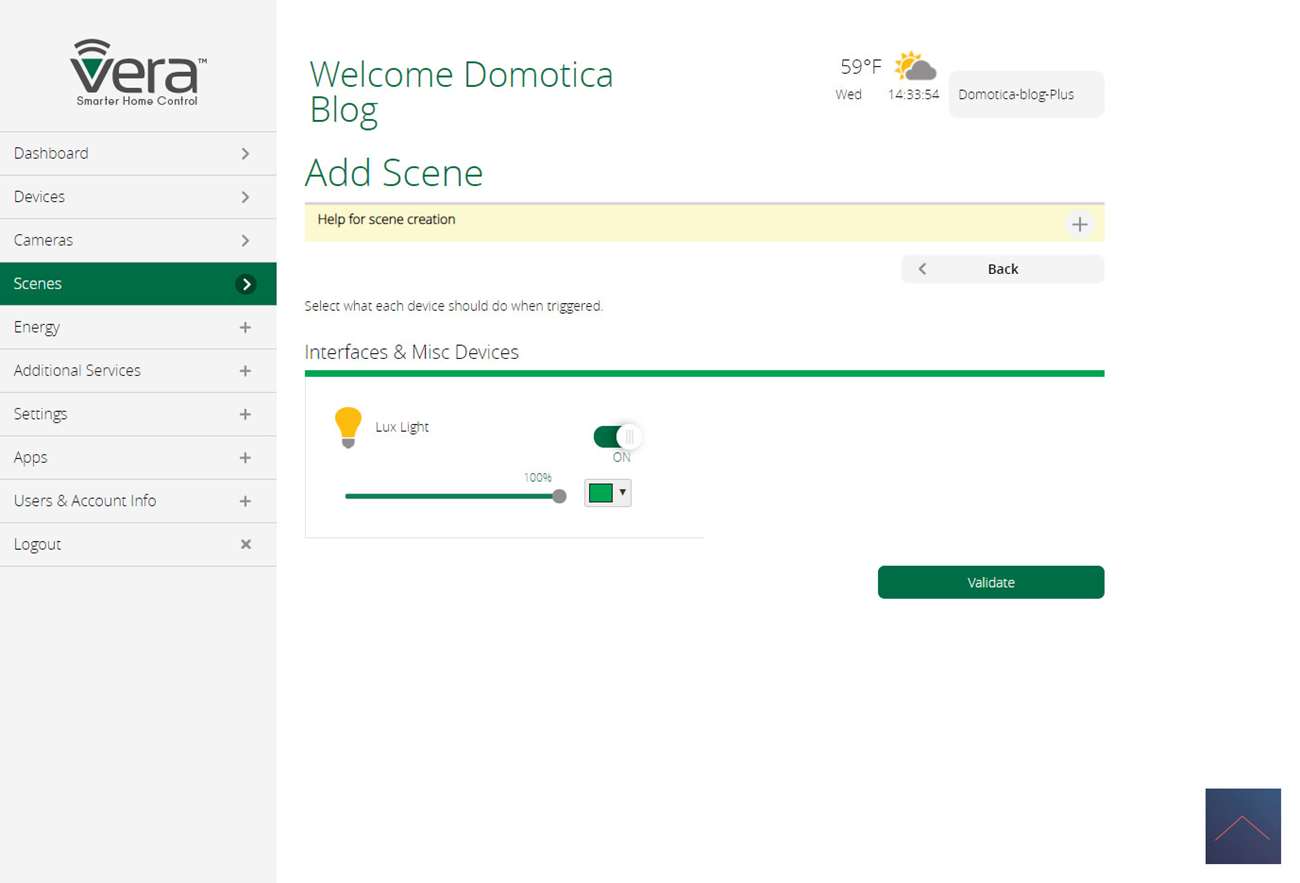

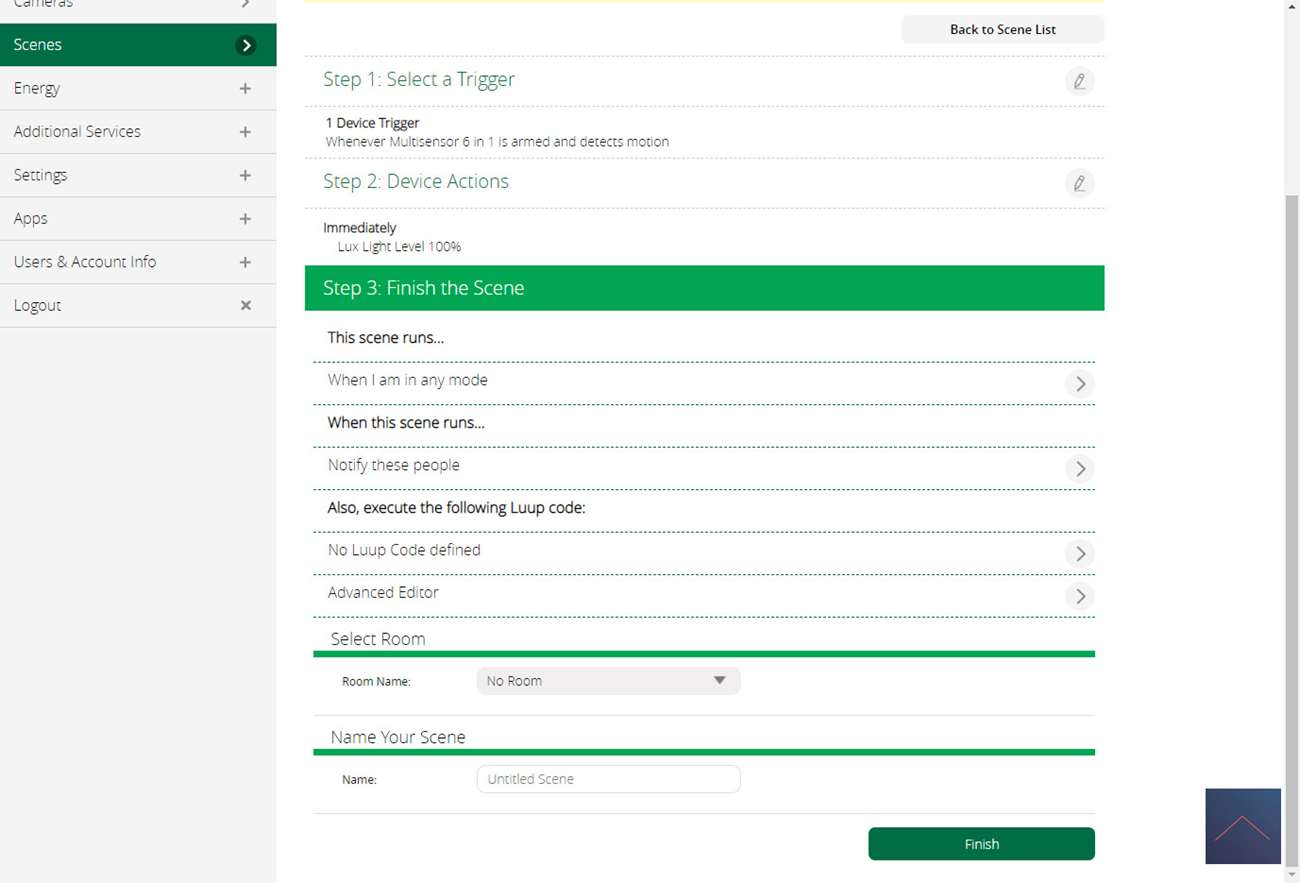

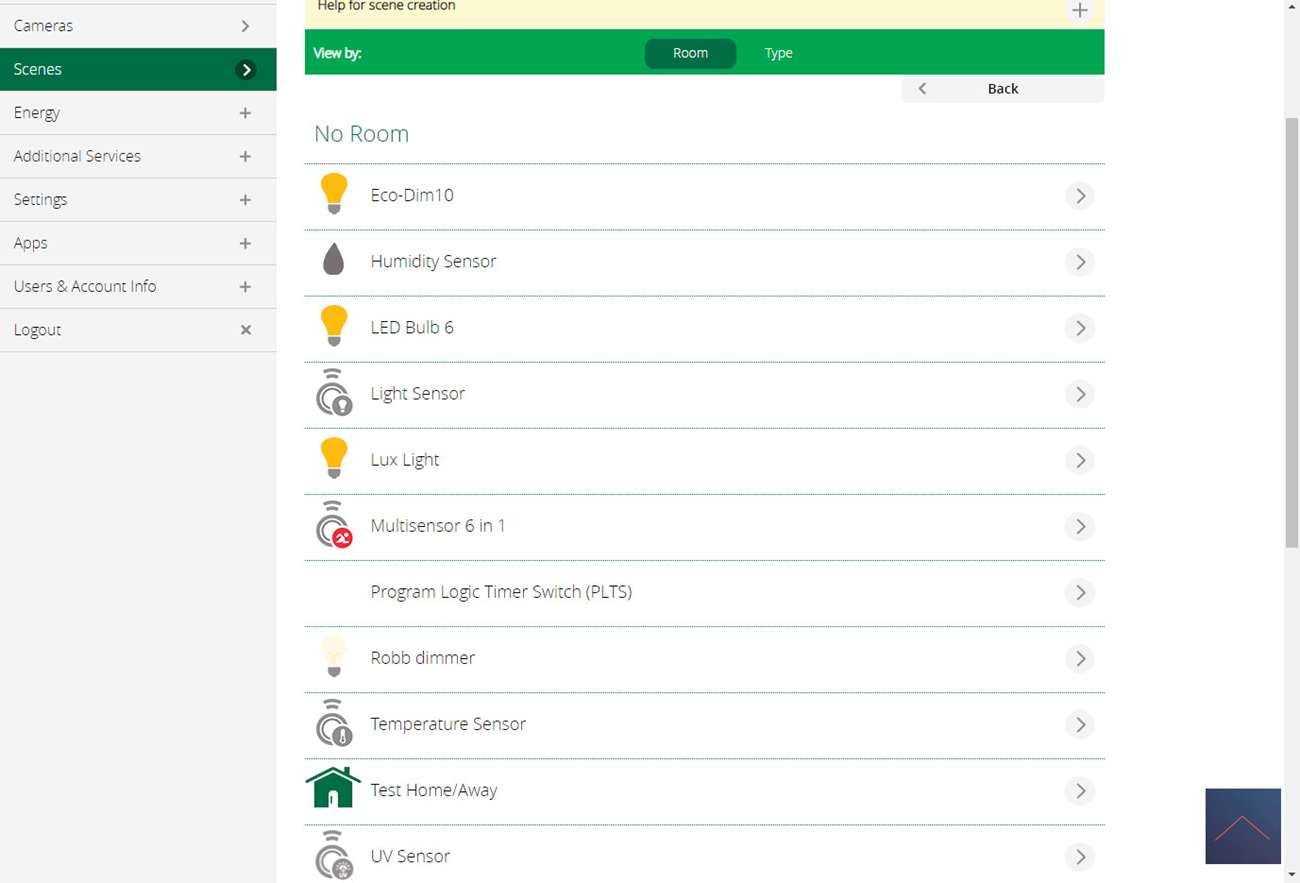

Example:

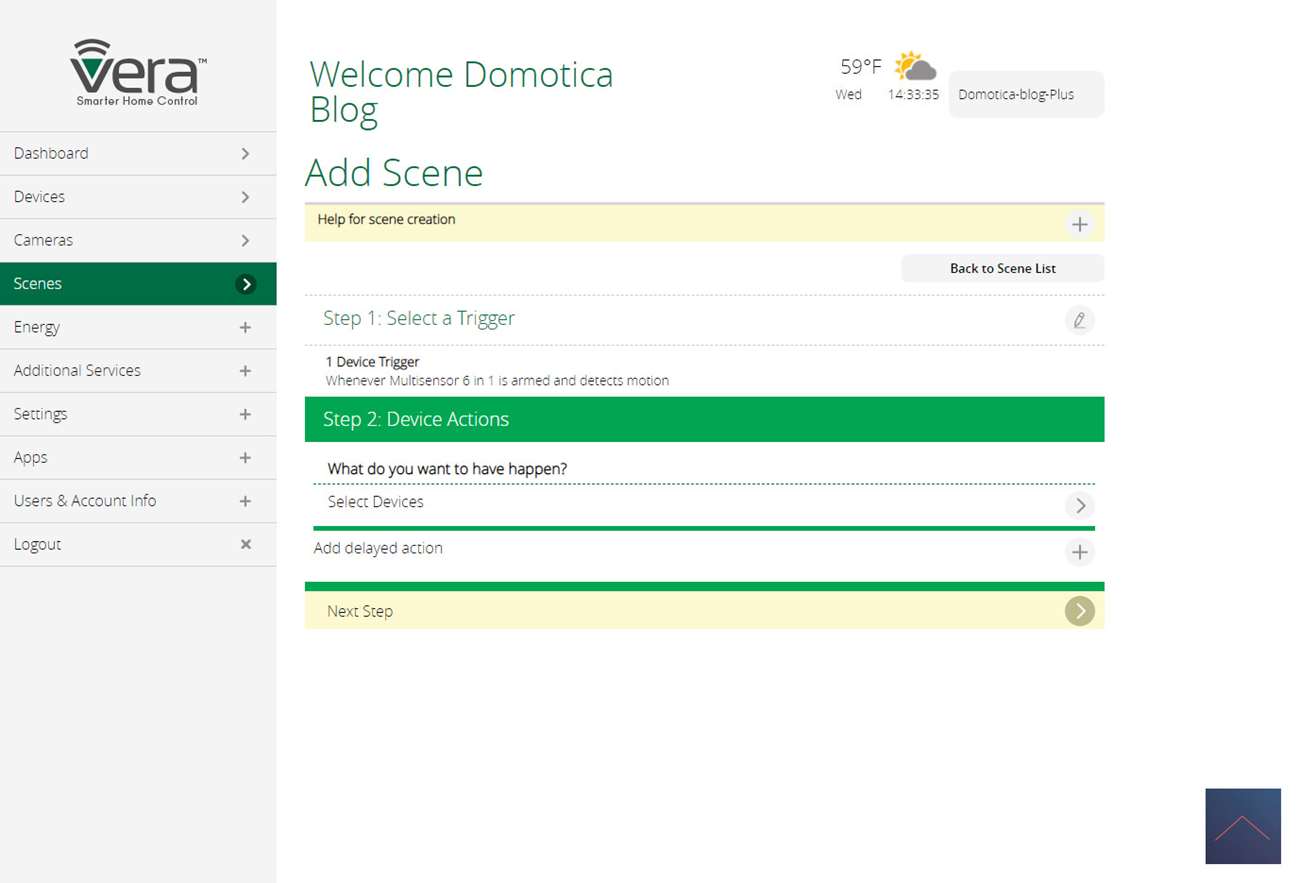

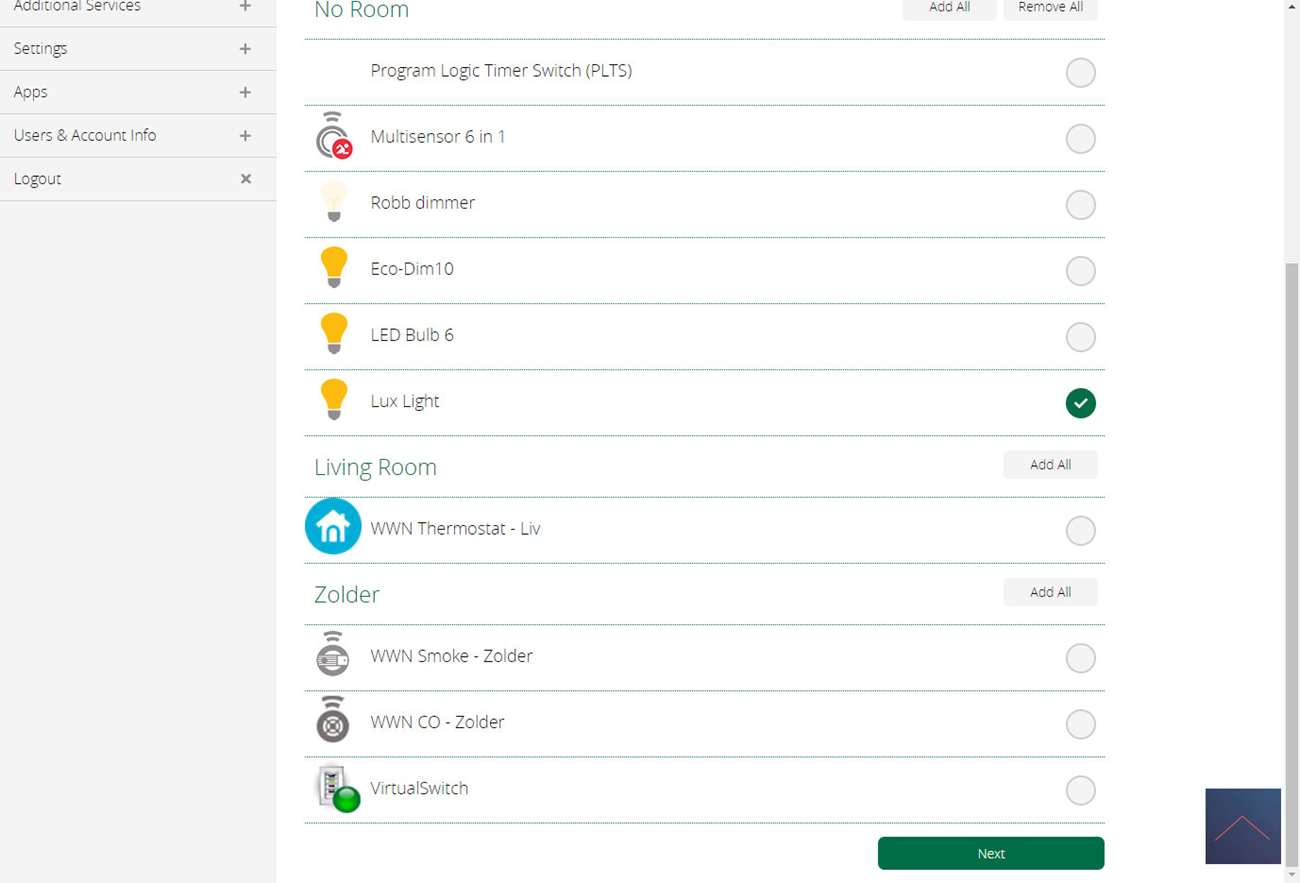

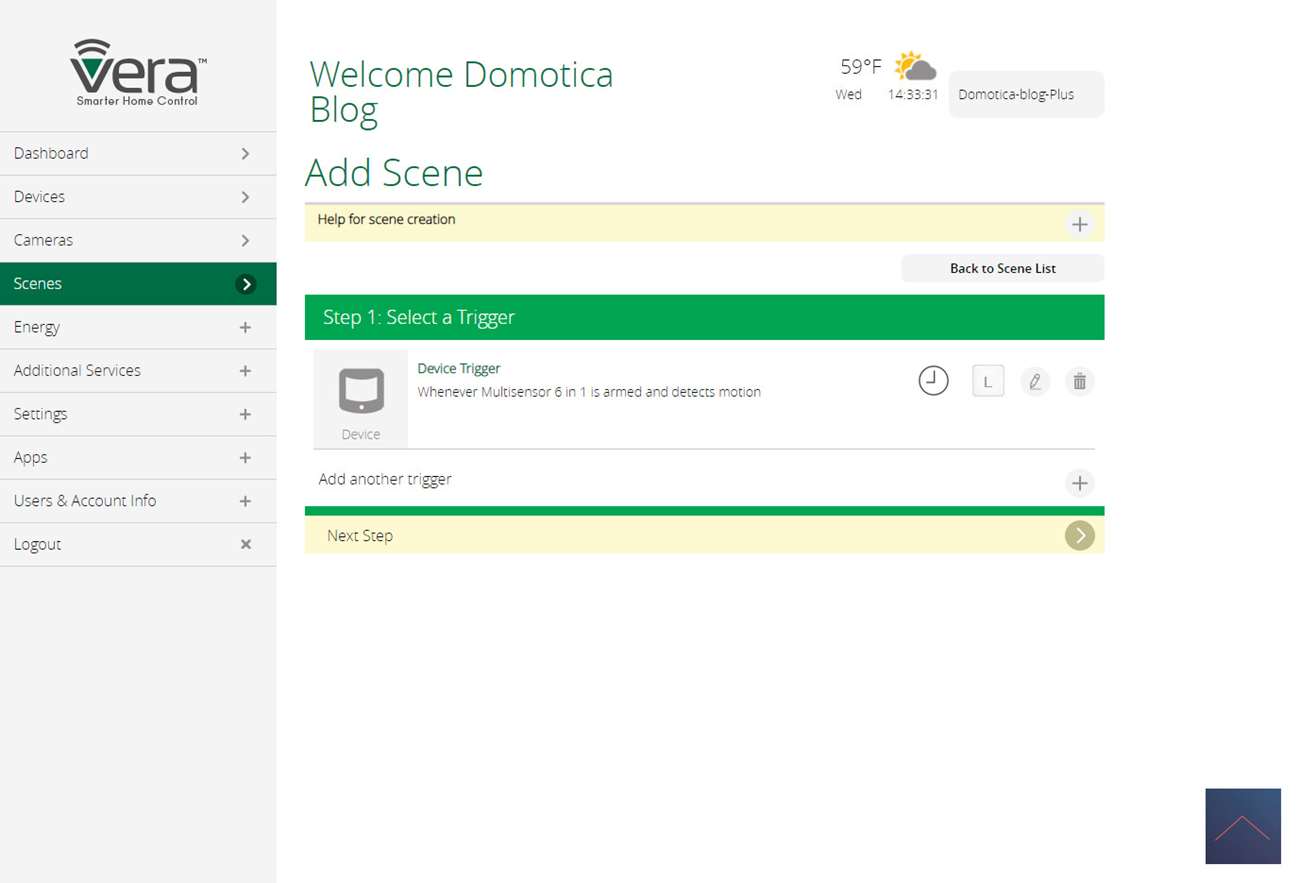

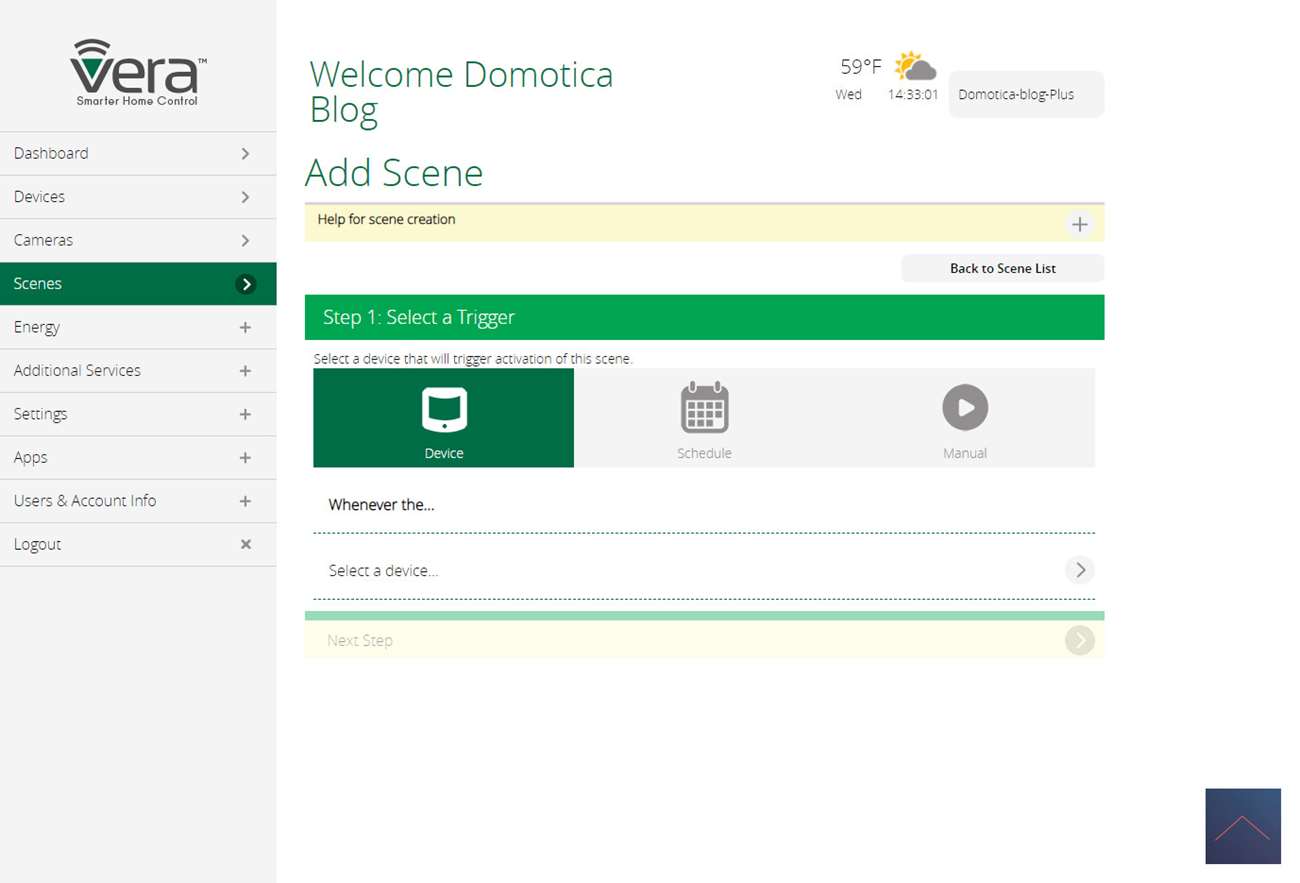

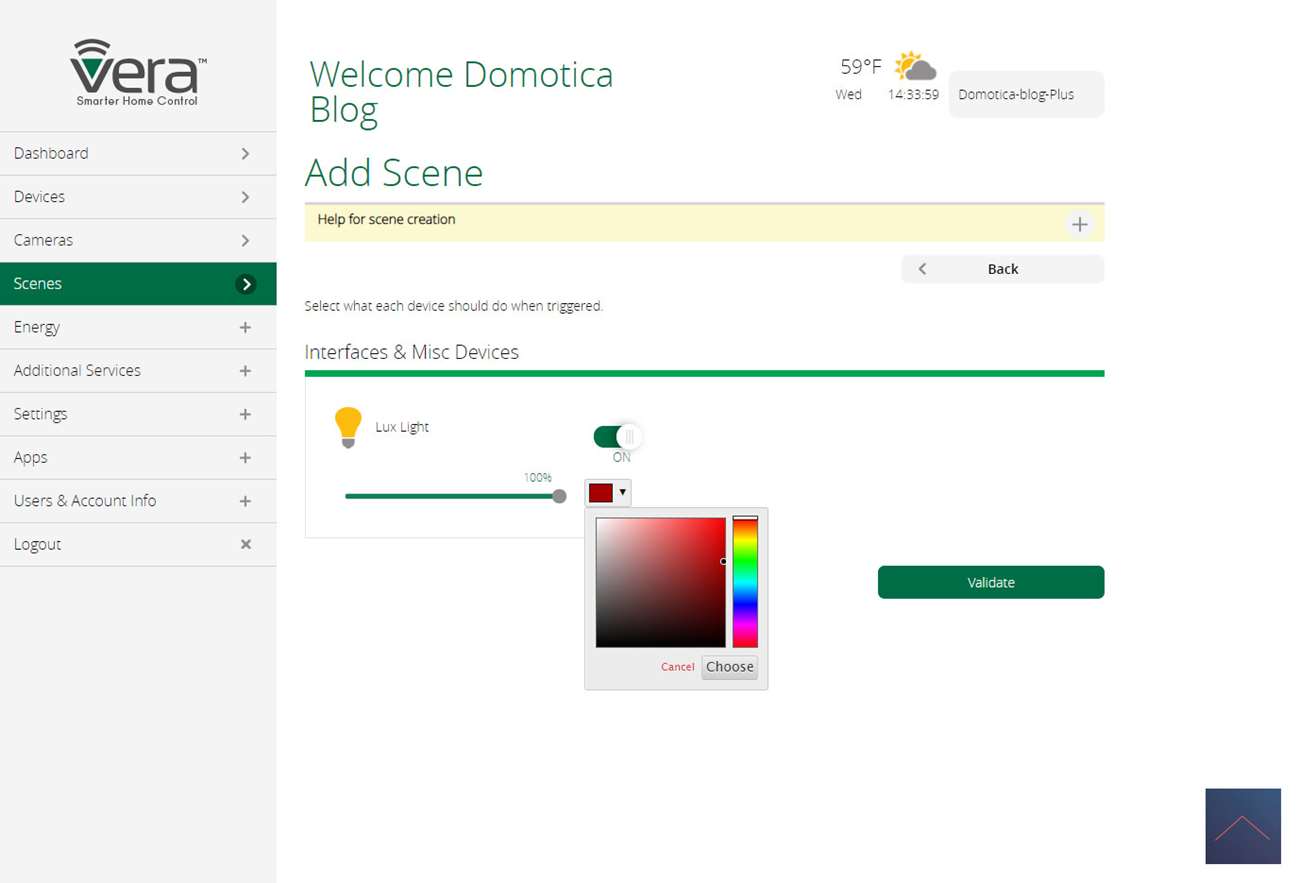

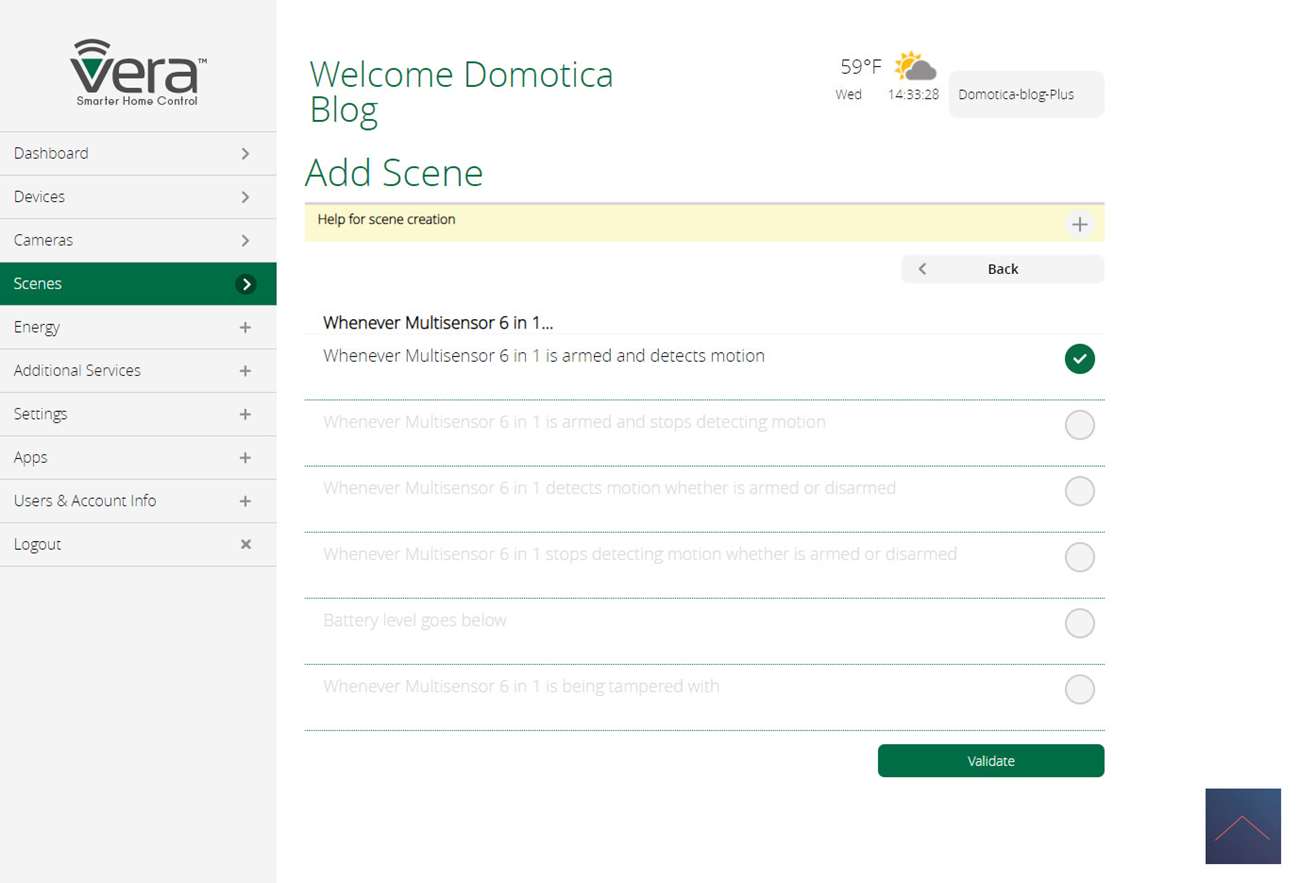

If the motion is "armed" and gives movement, the Luxy should turn red.
