June 03, 2021 | Niels Laan | Eco-DIM, Built-in dimmer

Eco-DIM.10 - Smart LED Dimmer Module - Zigbee

Installation on the Homey:

We are going to install this built-in dimmer first on the Homey Smart Home controller. We start by removing the old dimmer/switch. Of course make sure the power is off. We connect the wires according to the supplied scheme. This can be both 2 and 3 wire. We also immediately connect the switch and screw the whole thing shut.

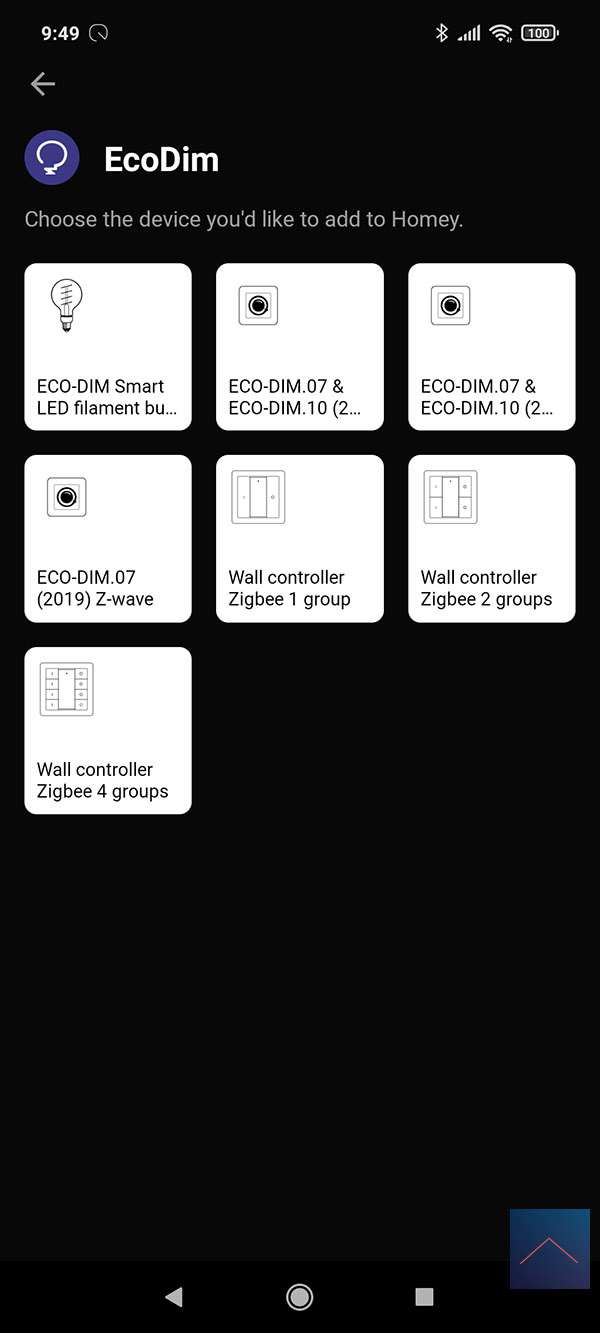

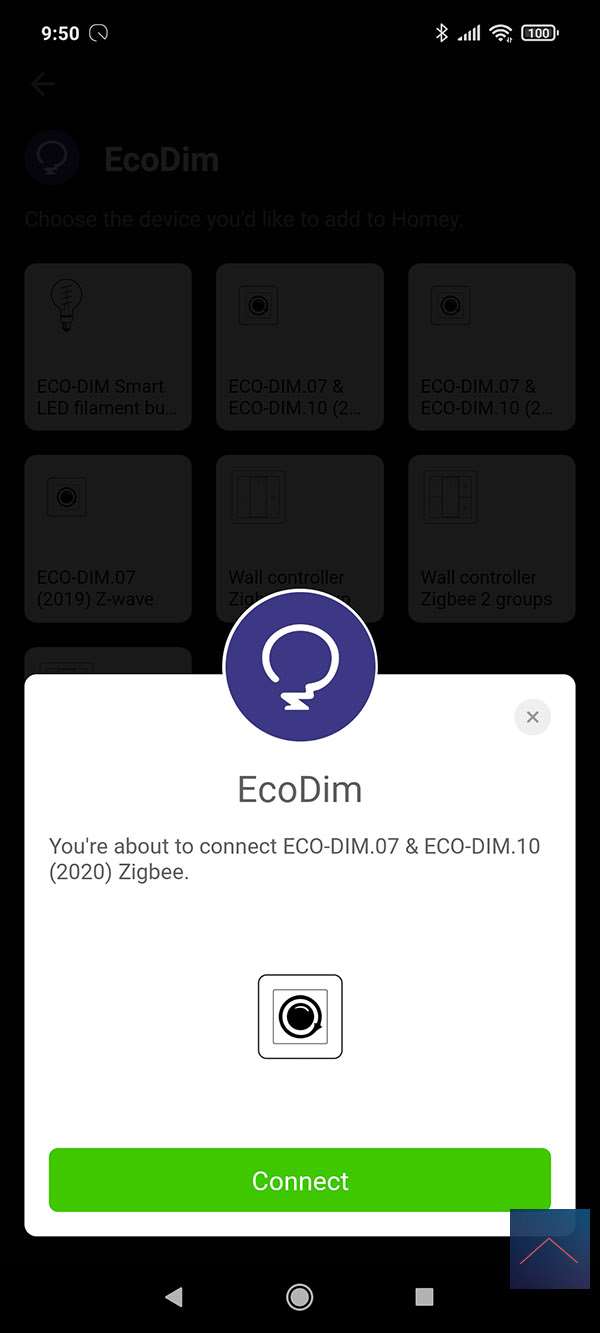

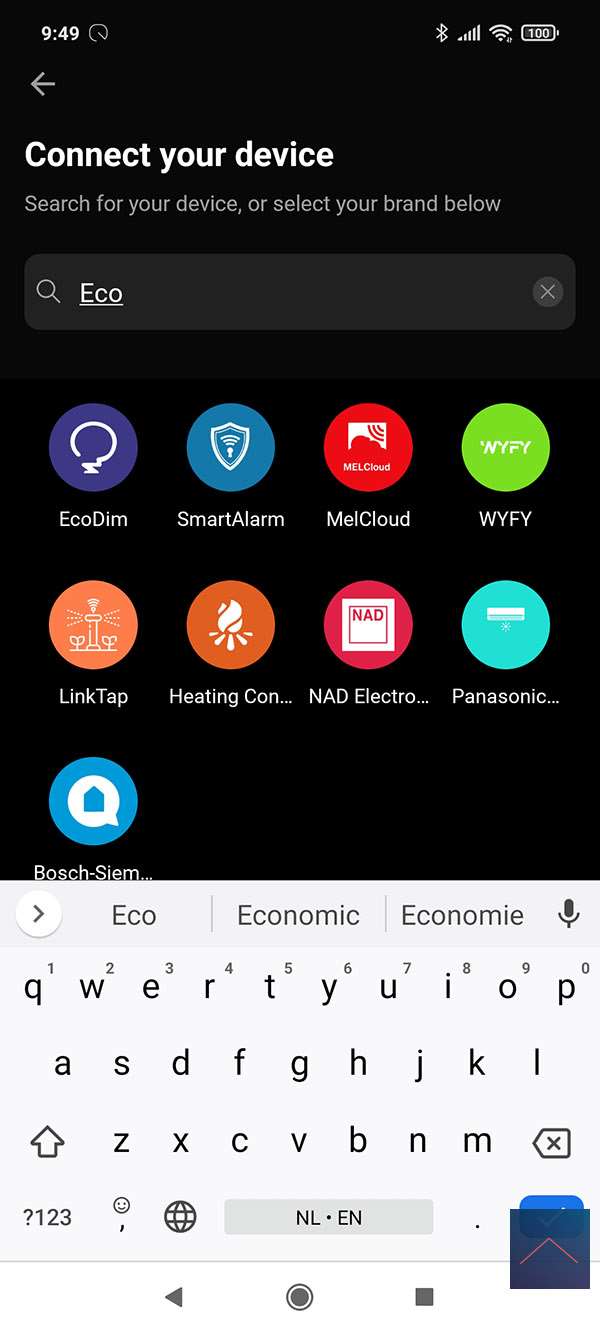

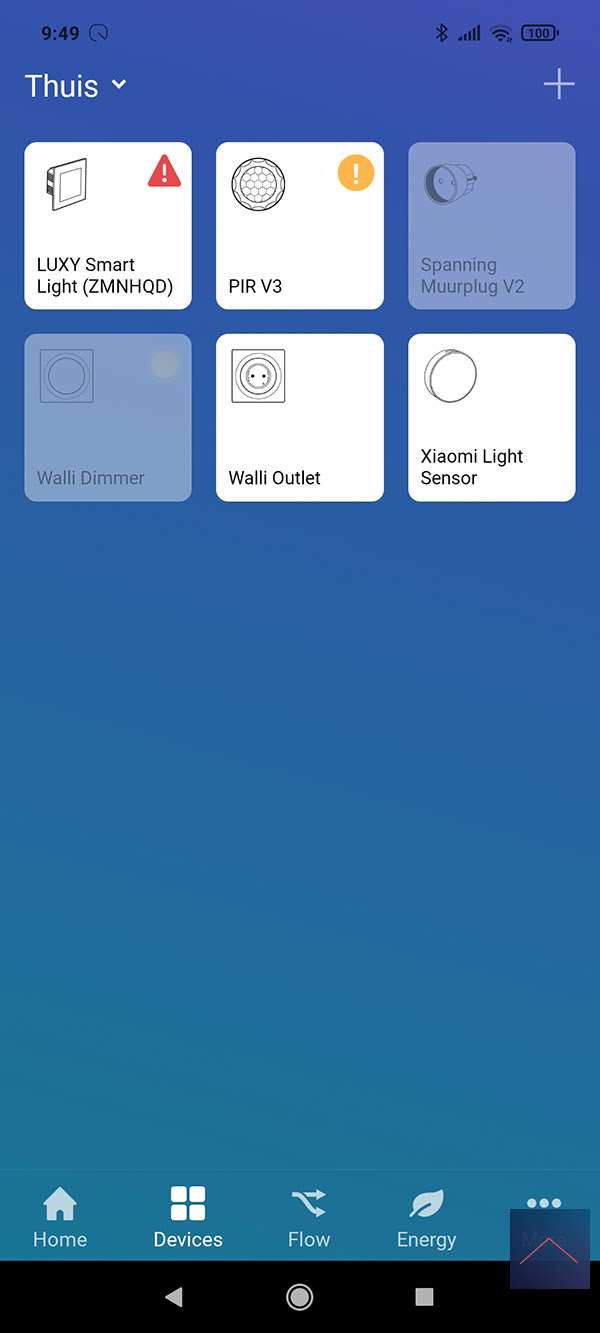

Now we put the power back on and start the Homey APP. We go to our devices and press the plus sign. Then search for "Eco dim" and install the APP (if you don't already have it). Now you have to take a good look at which one you need because you need the Zigbee variant, after selecting the installation will start.

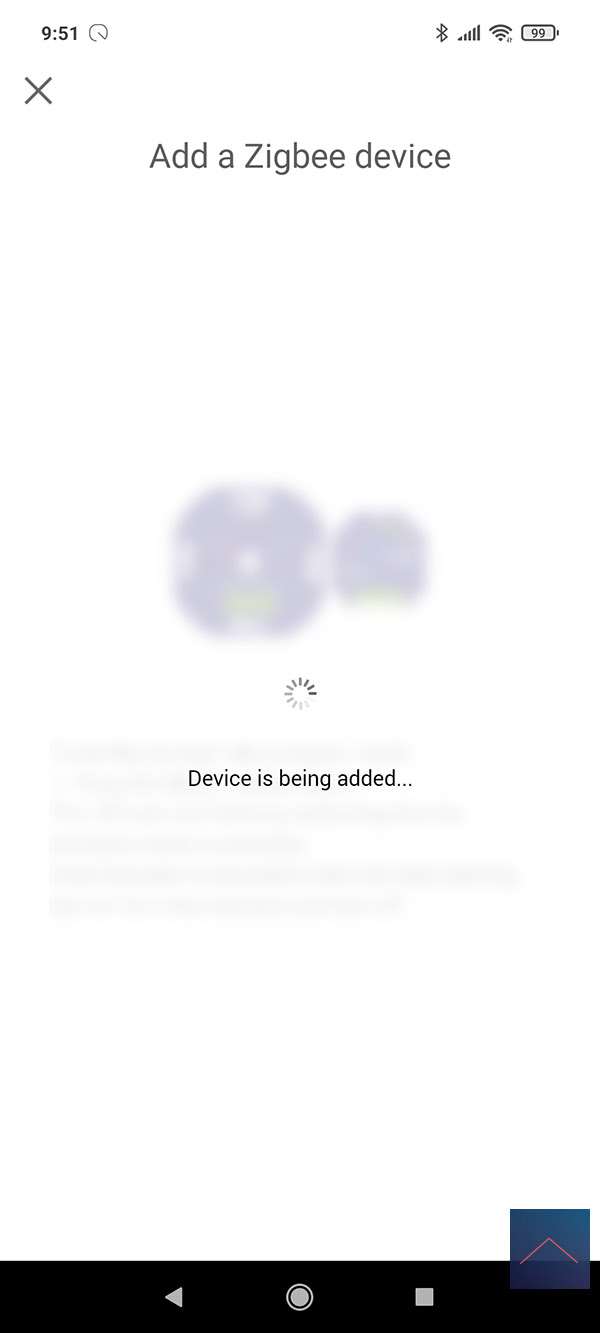

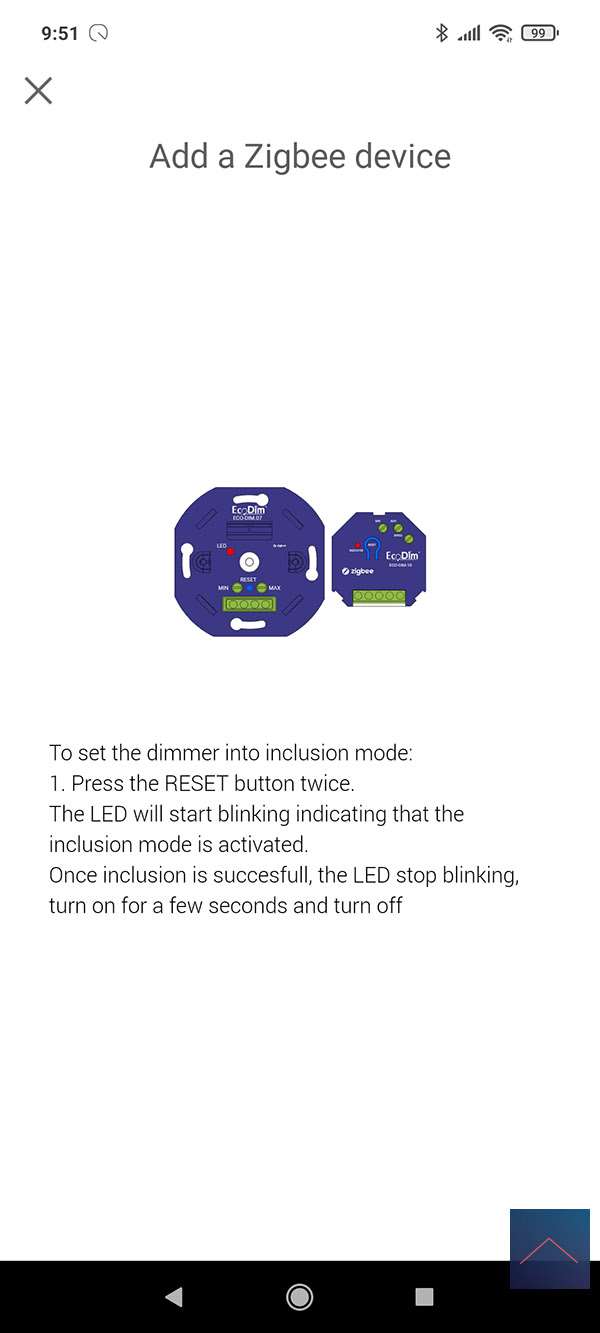

To add the dimmer, we press the reset button twice in succession. The LED will blink blue and if the addition is successful it will go out. If it doesn't work, you have to hold the reset button for 5 seconds. After this, follow the procedure in the APP again.

As expected, it is added and I can operate it via the Homey (on/off and dimming).

Installation screens:

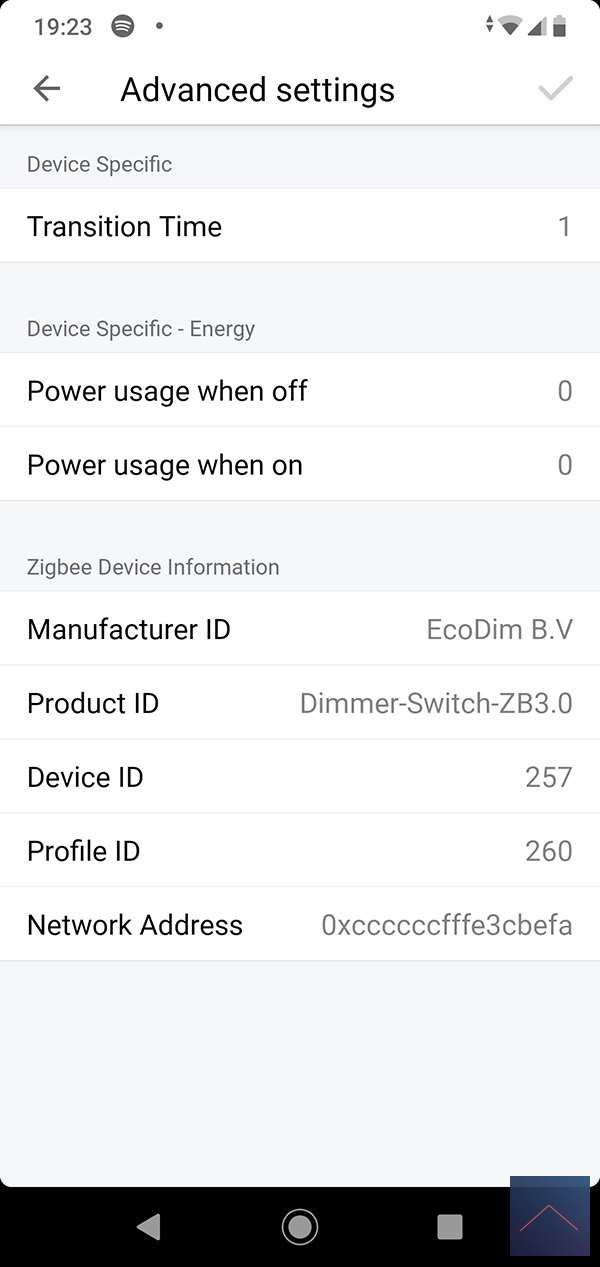

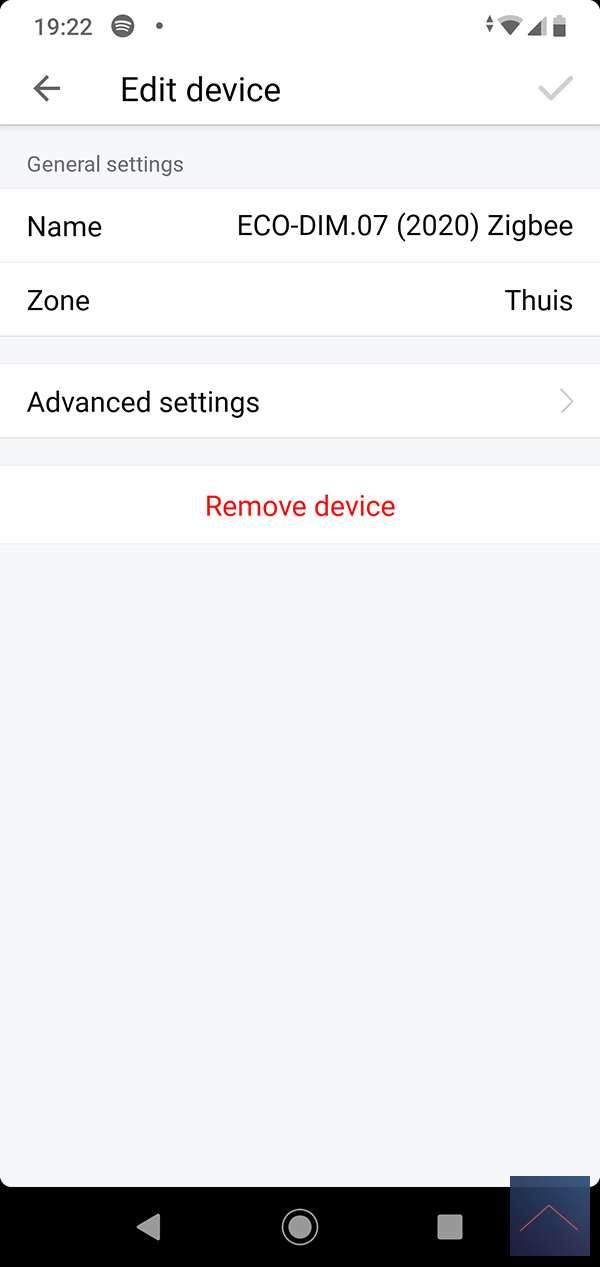

Configuration:

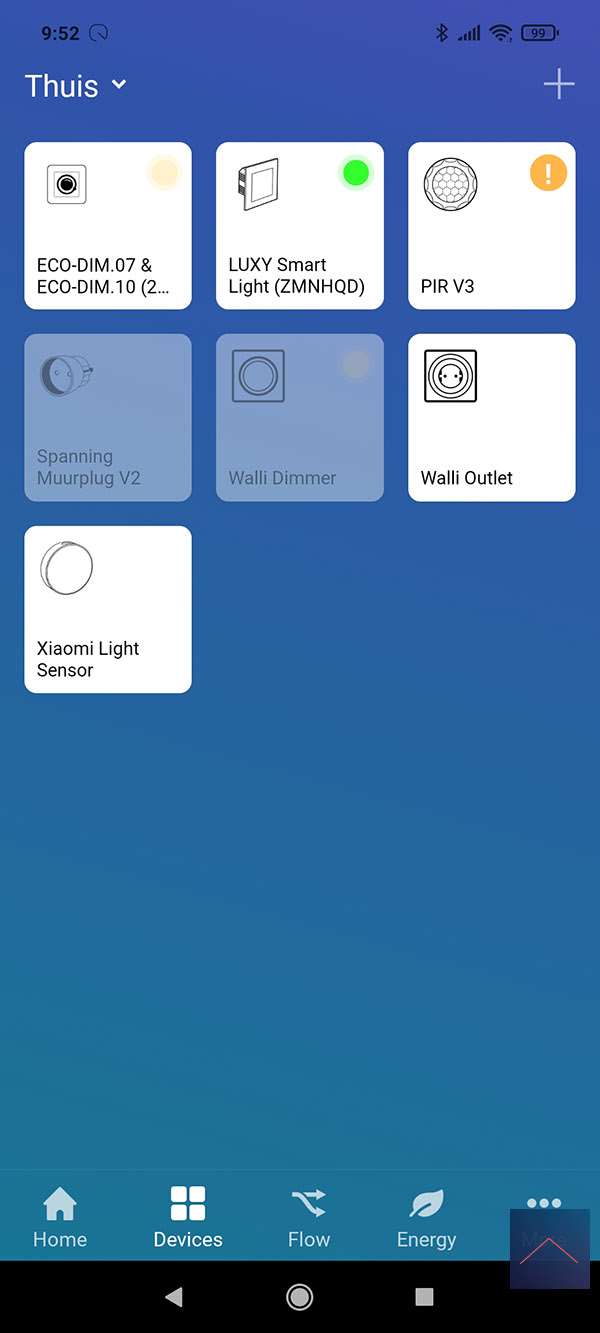

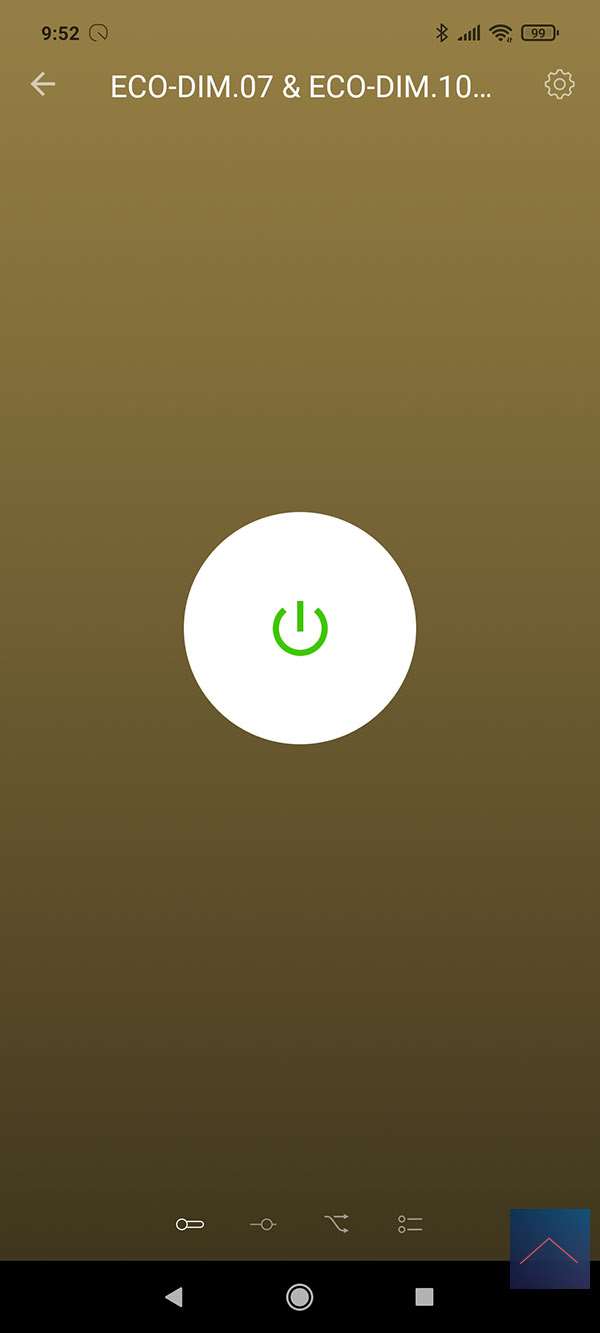

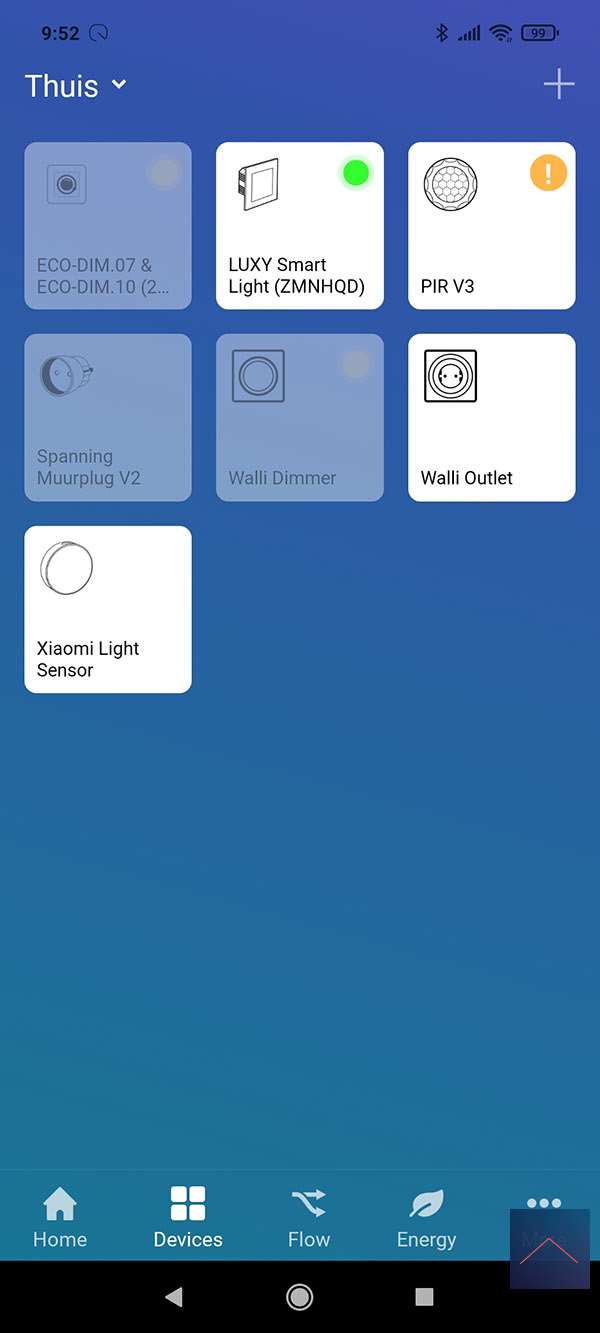

Devices:

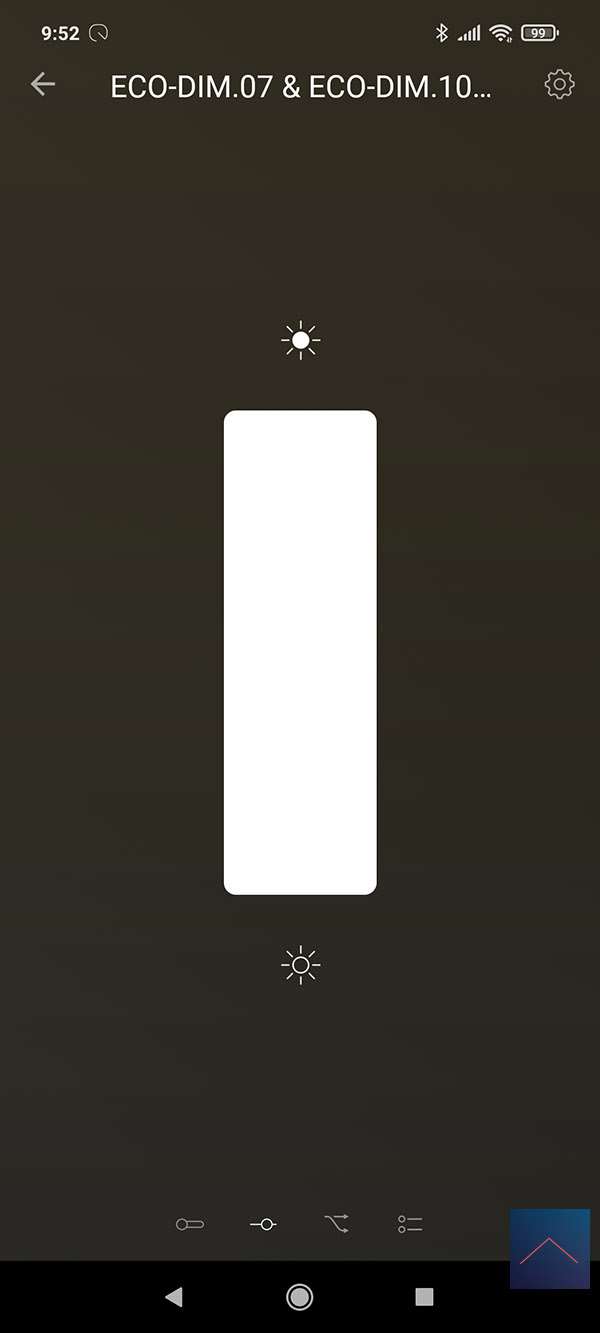

You get a dimmer and on/off switch.

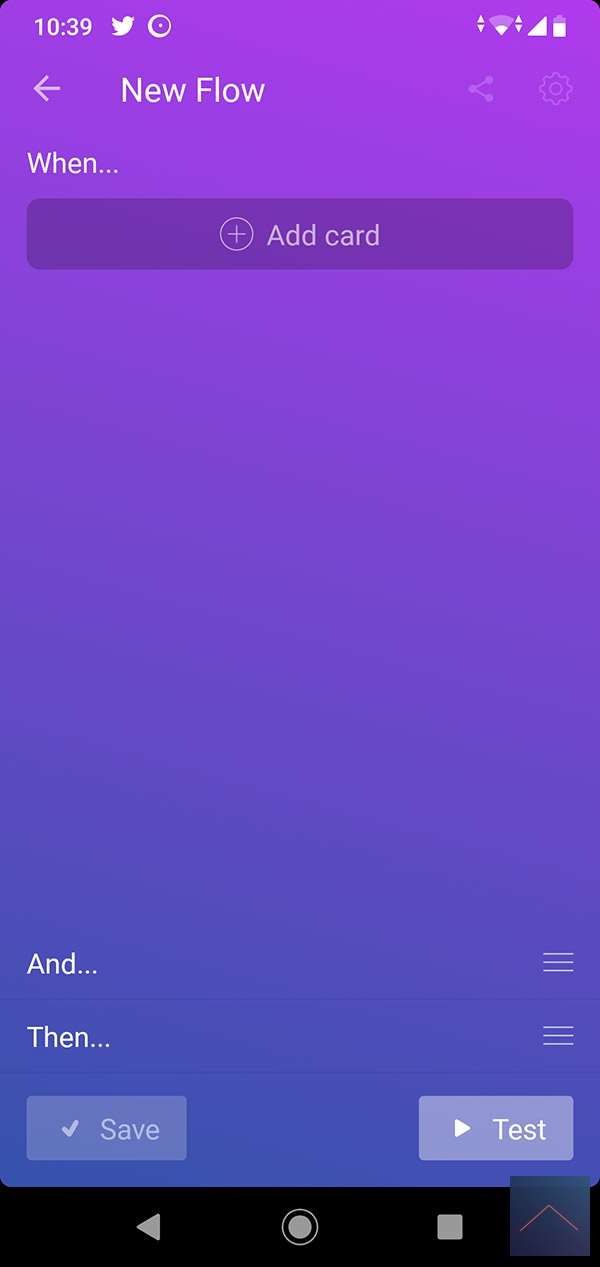

Flow options:

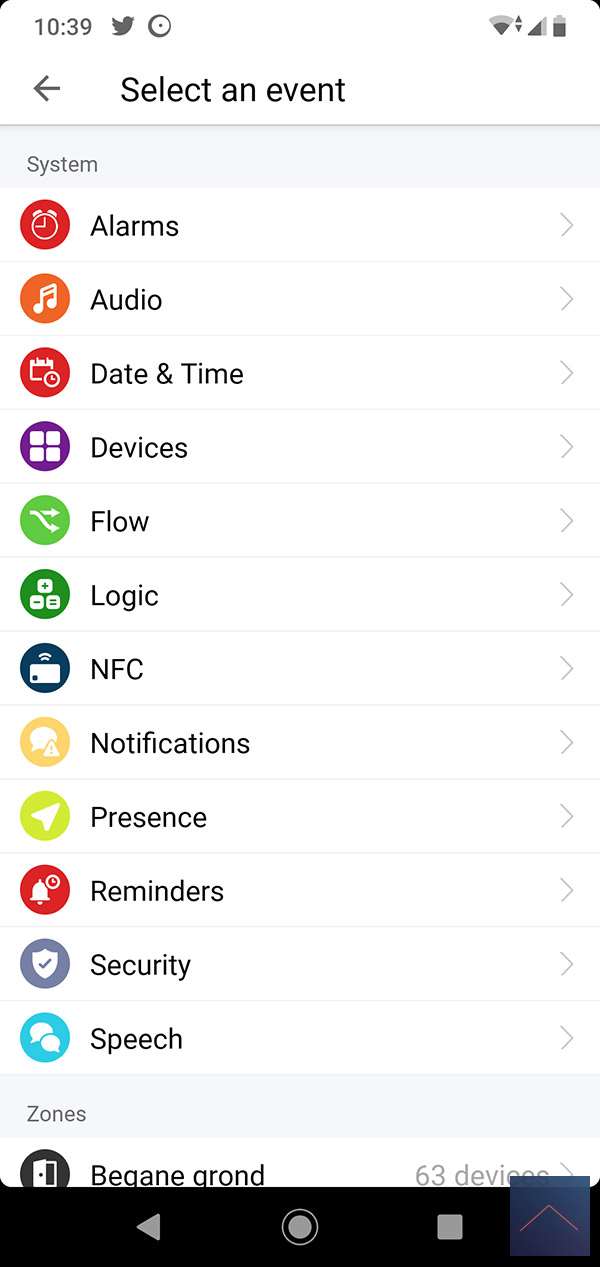

IF:

AND:

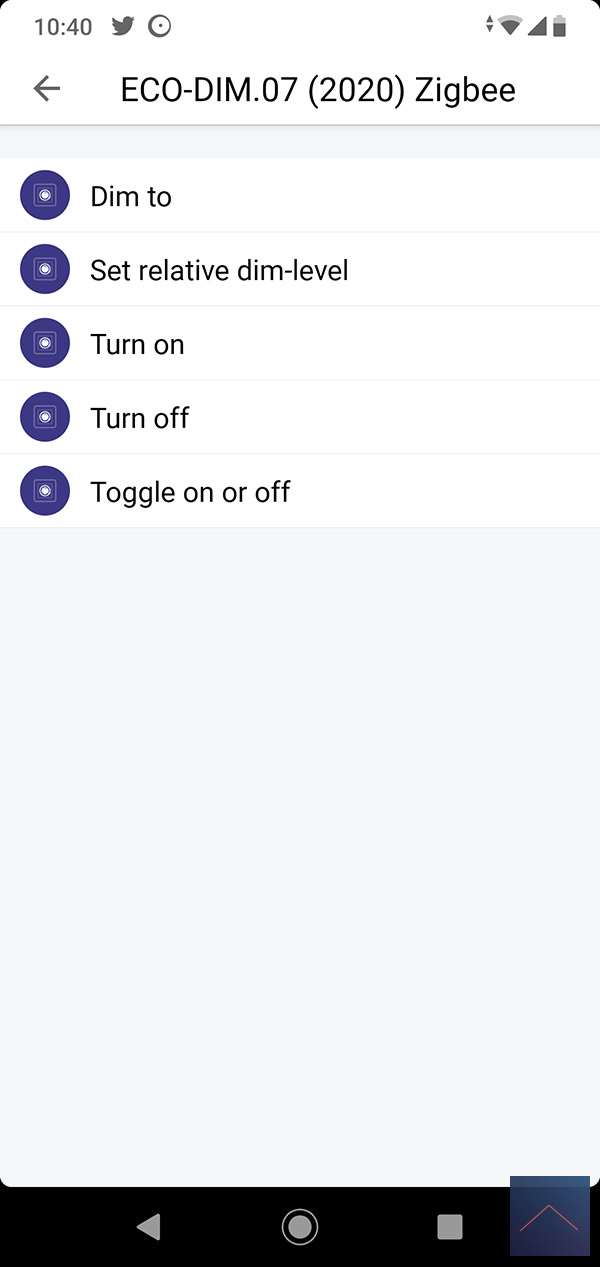

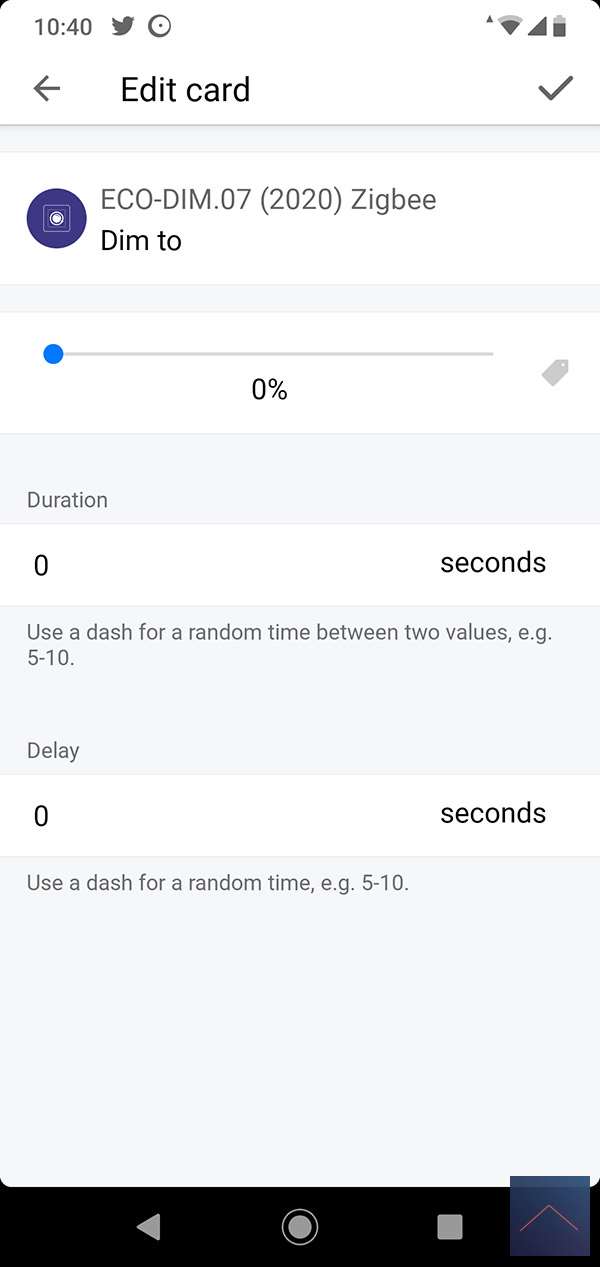

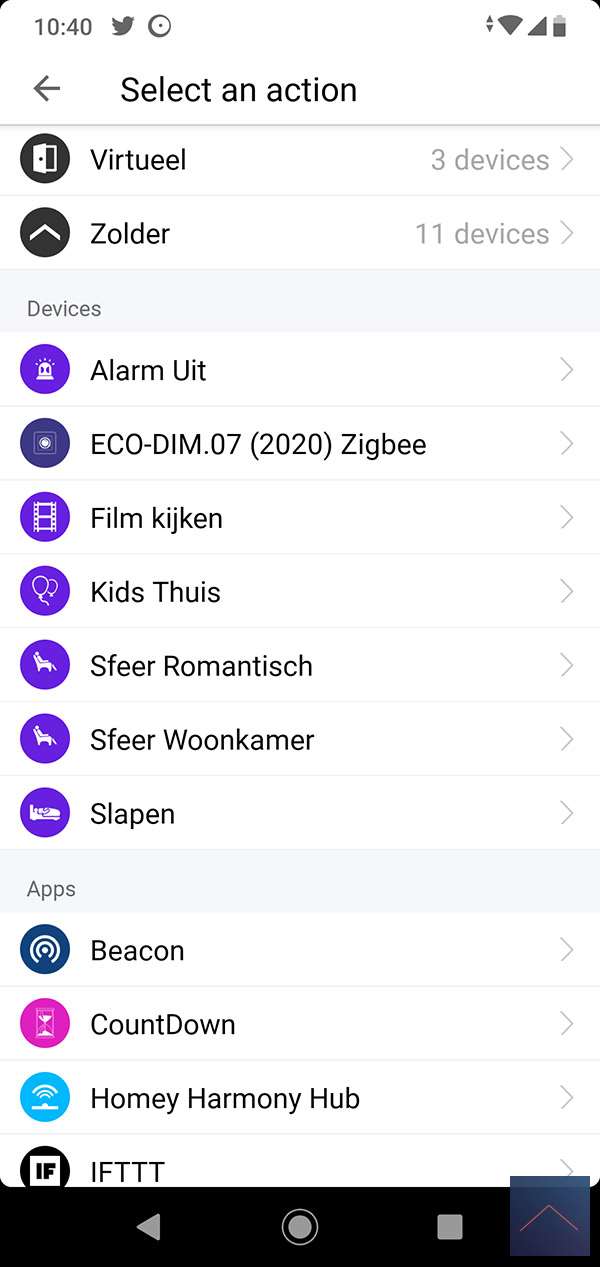

THEN:

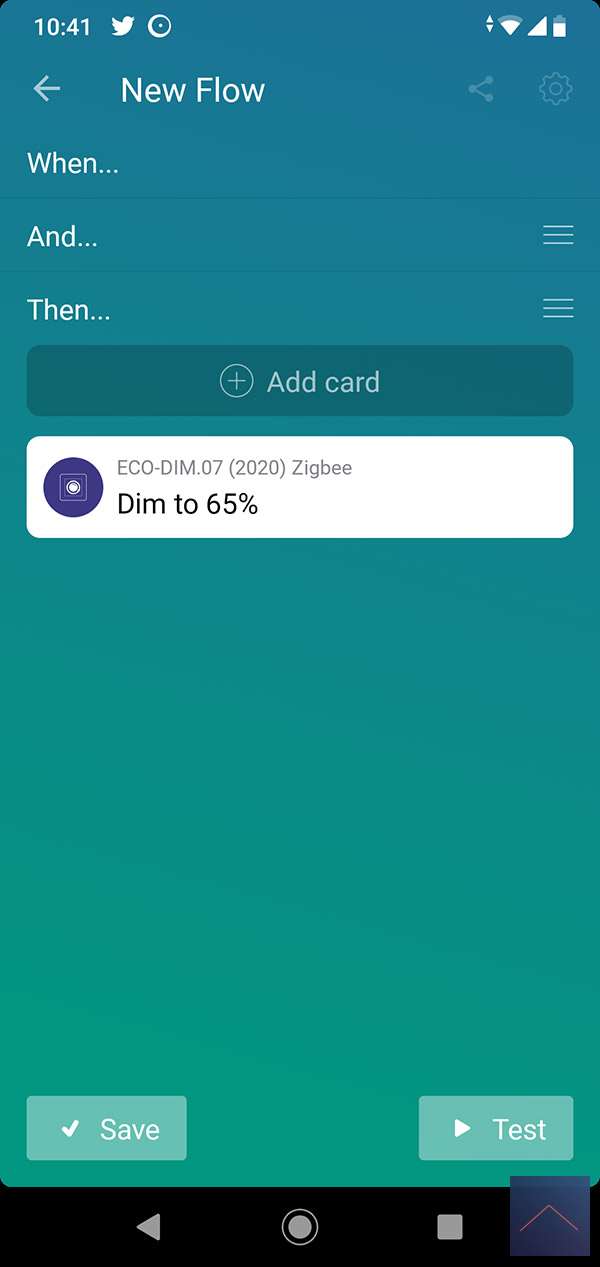

Flow example:

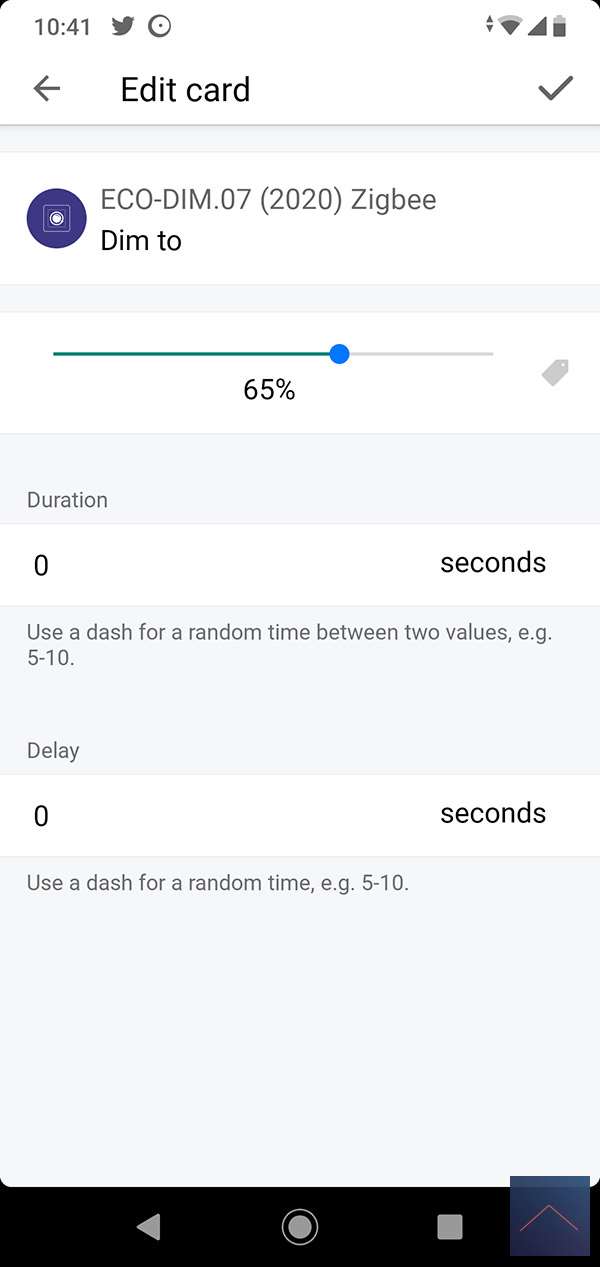

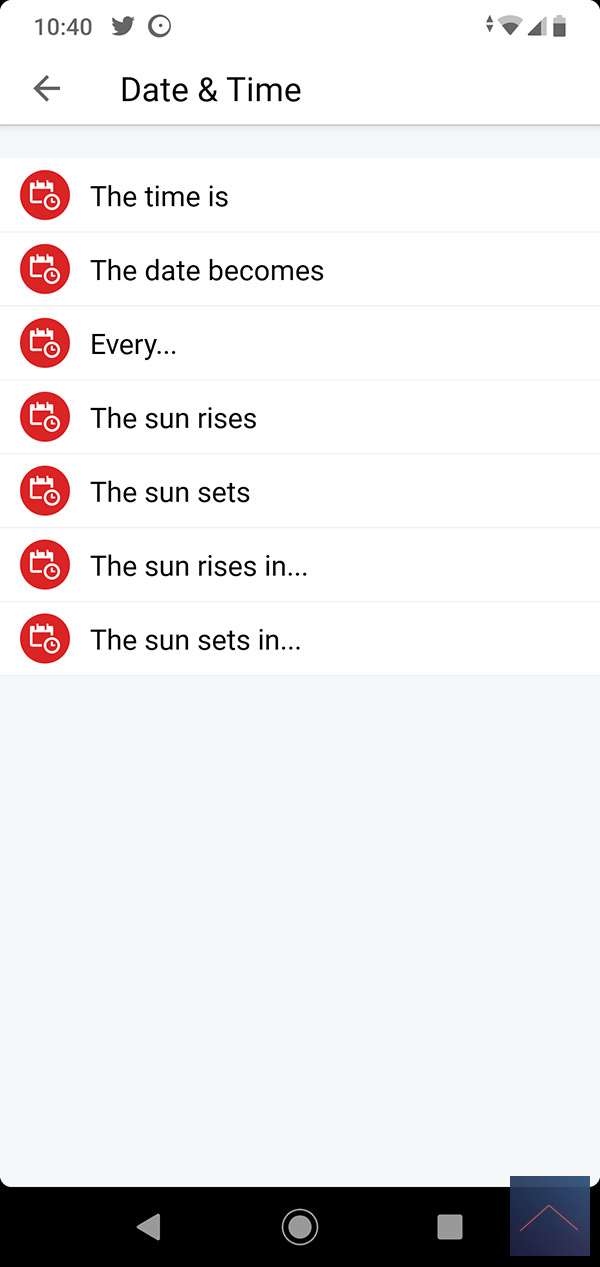

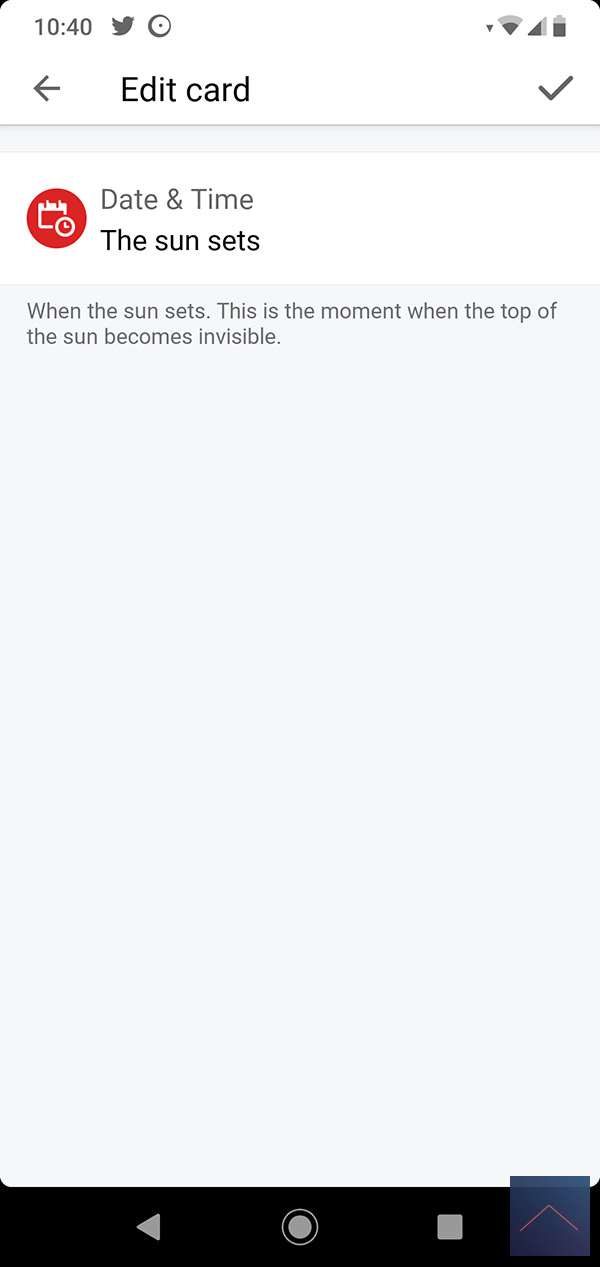

I would like the Eco-DIM to be turned on when the sun goes down. You can arrange this with the date and time trigger and of course switch on the lamp.

This product is for sale for:


Eco-DIM.10
€ 50
Buy

Author:
Niels Laan

Founder of this blog and passionate home automation nerd. All articles from Niels
