June 03, 2021 | Niels Laan | Eco-DIM, Built-in dimmer

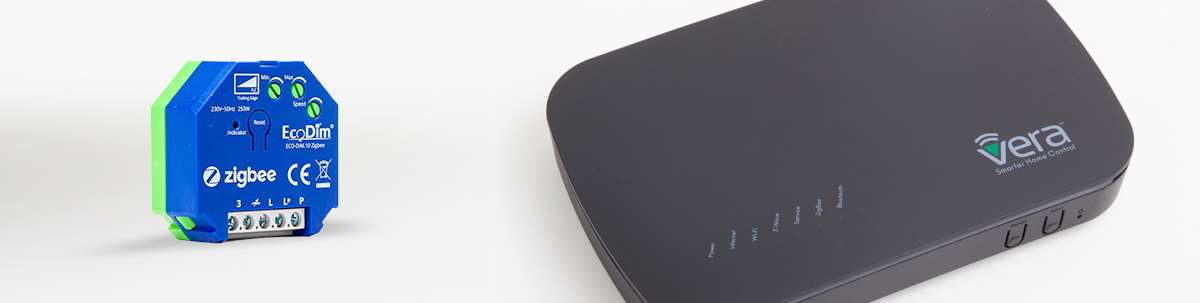

Eco-DIM.10 - Smart LED Dimmer Module - Zigbee

Installation on the Vera Plus:

The last controller on which we will install the Eco-DIM is the Vera. The controller has a Zigbee controller on board so adding should go smoothly

The first step is to unplug the old dimmer/switch and remove it.

Once you have done this, install the dimmer according to the supplied diagram. It uses a 2 or 3 wire system, so you don't have to pull extra wires. Then mount the switch and screw the whole thing shut and supply everything with power.

Log in to the controller and go to your devices and then click on "add device" and search for Eco dim. This one was not found but we can try to add it as "generic Zigbee". When we have clicked on this, I supply the dimmer with power and go through the steps. When the LED lights up blue, you can press the reset button on the front of the dimmer twice in succession. If the LED lights up red, you have to reset it. You do this by holding the reset button for 5 seconds. After this, press the reset button twice again to start adding. The LED will now no longer flash but will take on a solid blue color.

It was found by the Vera but at first I only saw an on/off switch and after a while I also got a dim option. What is striking is that the whole sometimes reacts a bit slowly, but the command is eventually forwarded.

Installation screens:
