September 29, 2020 | Niels Laan | Eco-DIM, Built-in dimmer

Eco-DIM.10 - Smart LED Dimmer Module - Z-Wave

A review of this smarter Z-wave dimmer.

It is always nice to see that new manufacturers in the smart home market are making good progress and bringing new products to the market. This time we look at the product the Eco-DIM Smart LED Dimmer Module which works via Z-Wave.


We have made reviews of Eco-DIM products before. These were complete built-in dimmers that can be operated with a rotary knob. The Eco-dim.10 does not have this and can be operated via a normal switch. This switch must be a pulse variant.

You can dim it, switch it on and off and as a bonus you can view your current energy consumption and total consumption.

You install this module behind your existing wall switch. So you replace your (non-smart) dimmer with this variant and you can then operate it via your smart home system. You can also operate it the old-fashioned way, via the switch.

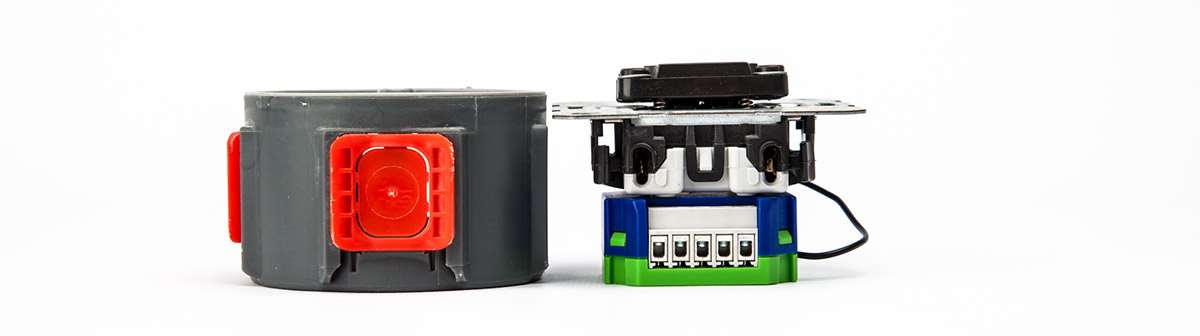

It is about 20mm thick, so make sure you use a minimum wall box of 40mm, preferably a 50mm because then you have more space for your wires.

The great thing about this module is that you don't need a ZERO / blue wire. So it can work with 2 wires. This is nice because not all Dutch recessed boxes have a blue wire.

You can connect an LED / halogen lamp of up to 300W to this dimmer. In most cases this should be more than enough. Eco-dim indicates that this dimmer works well with the following lamps:

  • IKEA (except Tradfri)
  • Philips
  • Osram
  • Megaman
  • Sylvania
  • Sencys (Praxis)
  • Livarno Lux (Lidl)
  • EcoBright

The following lamps are not well supported:

  • Pharox
  • Calex E14, with twisted bar or Gold series
  • Handson
  • Smart LED bulbs, such as Hue LED bulbs / Tradfri LED bulbs, etc.

It is for sale for € 74.95.



We will of course test it with various controllers.

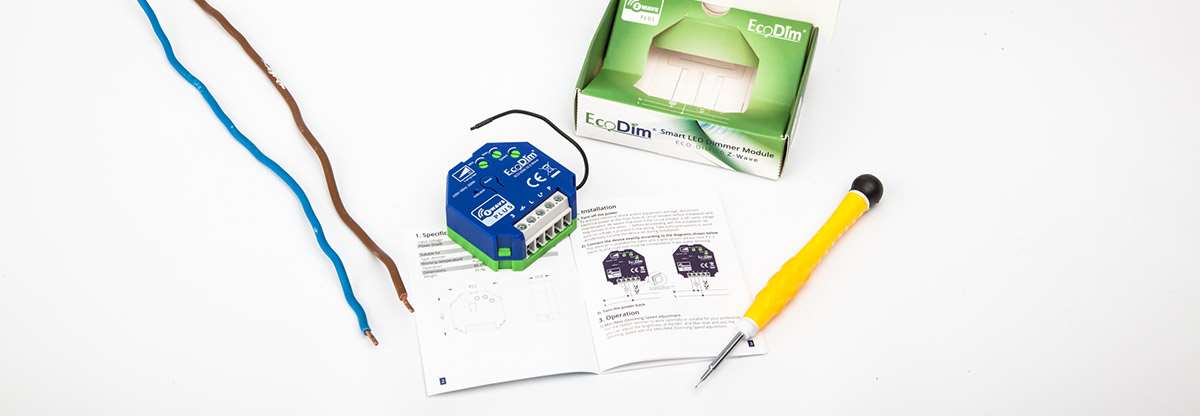

What do you get:
- Dimmer
- Instruction manual

Specifications:

Brand Eco-DIM
Voltage  250W/VA
Voltage 220-240V
Dimmable Phase cut / Trailing edge / RC / Tronic
IP Value IP20
Dimensions in mm 45.1*45.1*19.8mm
Approvals CE, RoHS, TÜV Rheinland
Warranty 2 jaar

Suitable pulse switches:

  • Berker by Hager
  • Busch-Jaeger
  • Gira
  • JUNG
  • Kopp
  • Merten by Schneider
  • Niko
  • PEHA

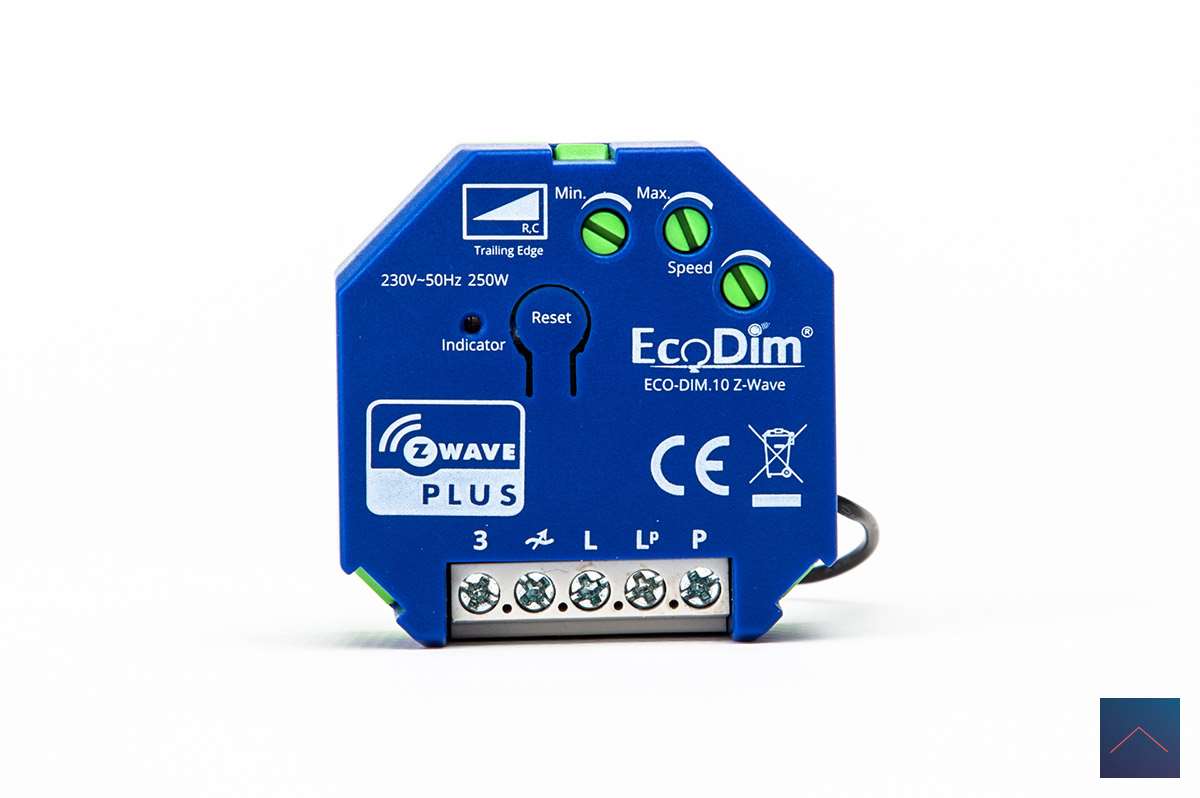

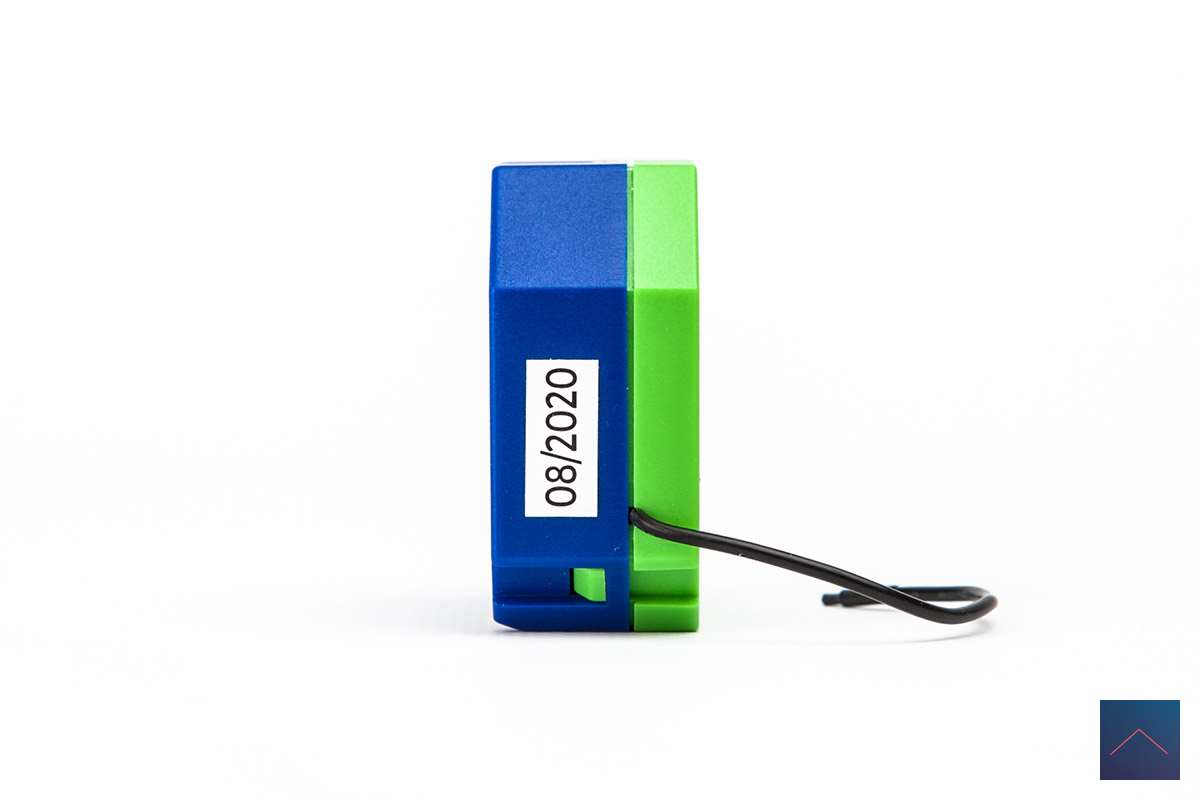

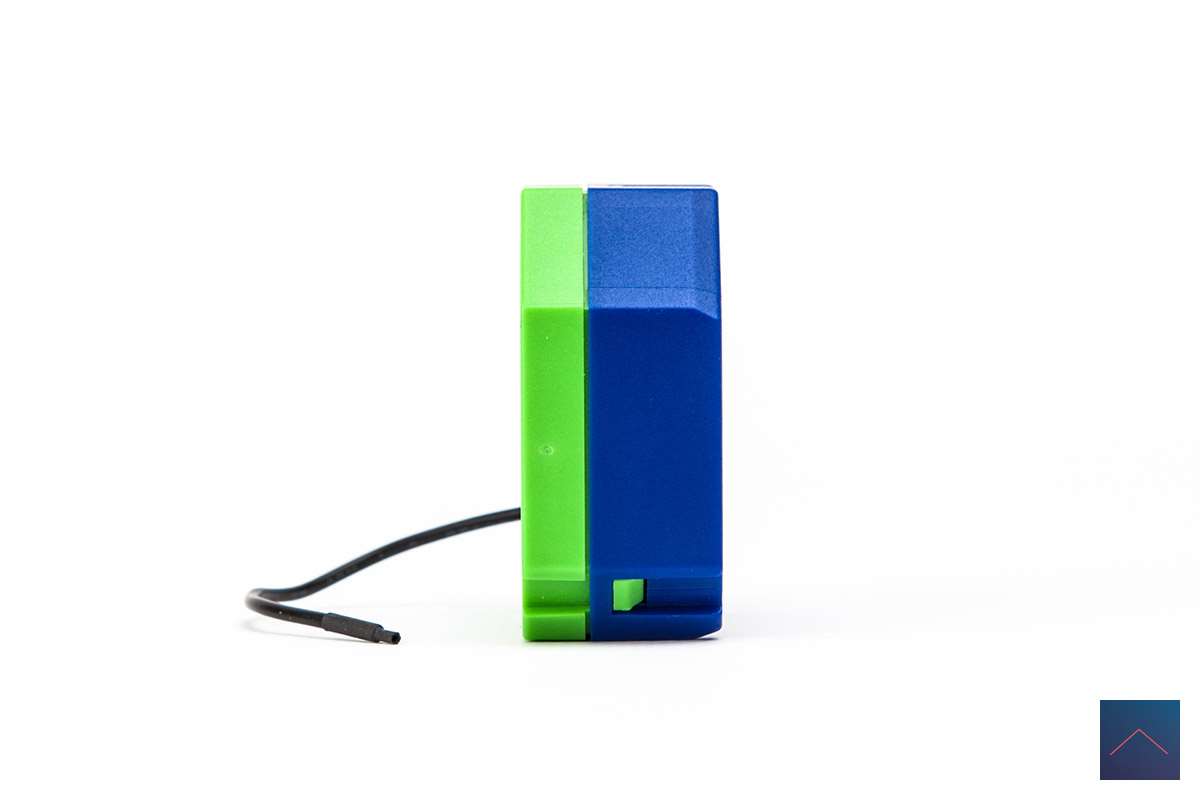

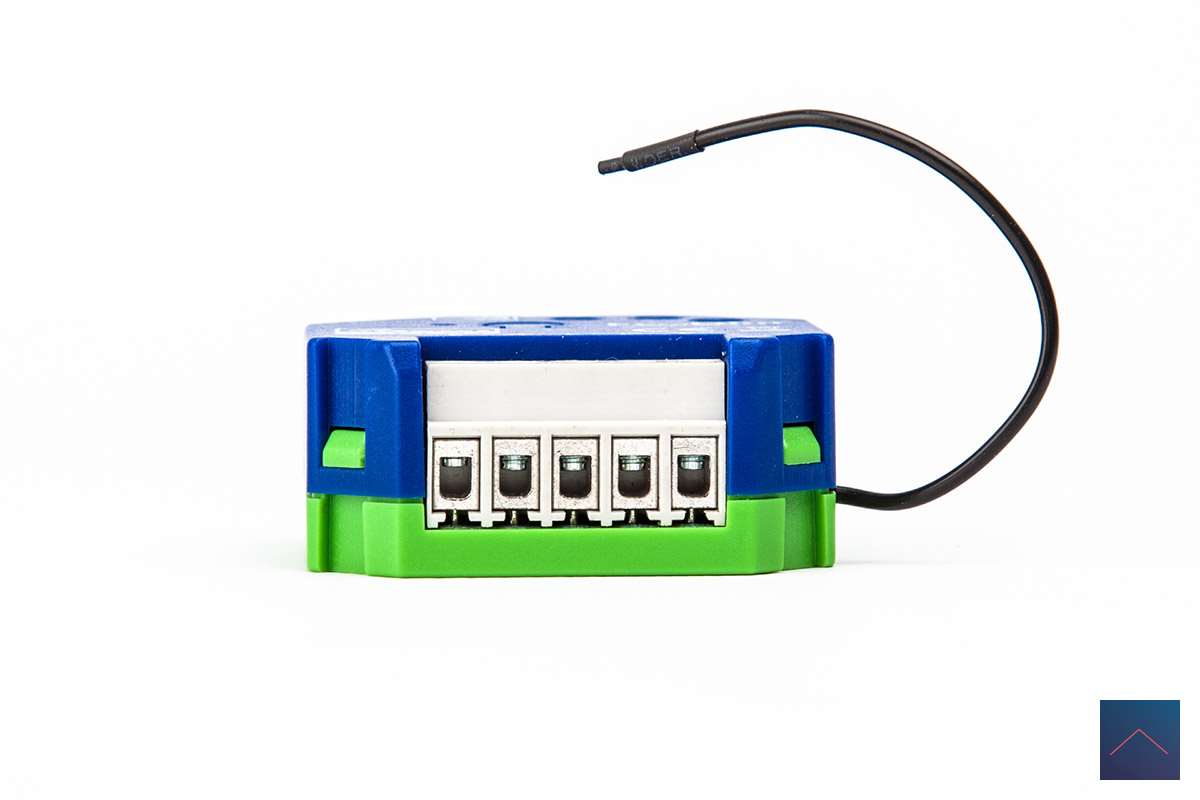

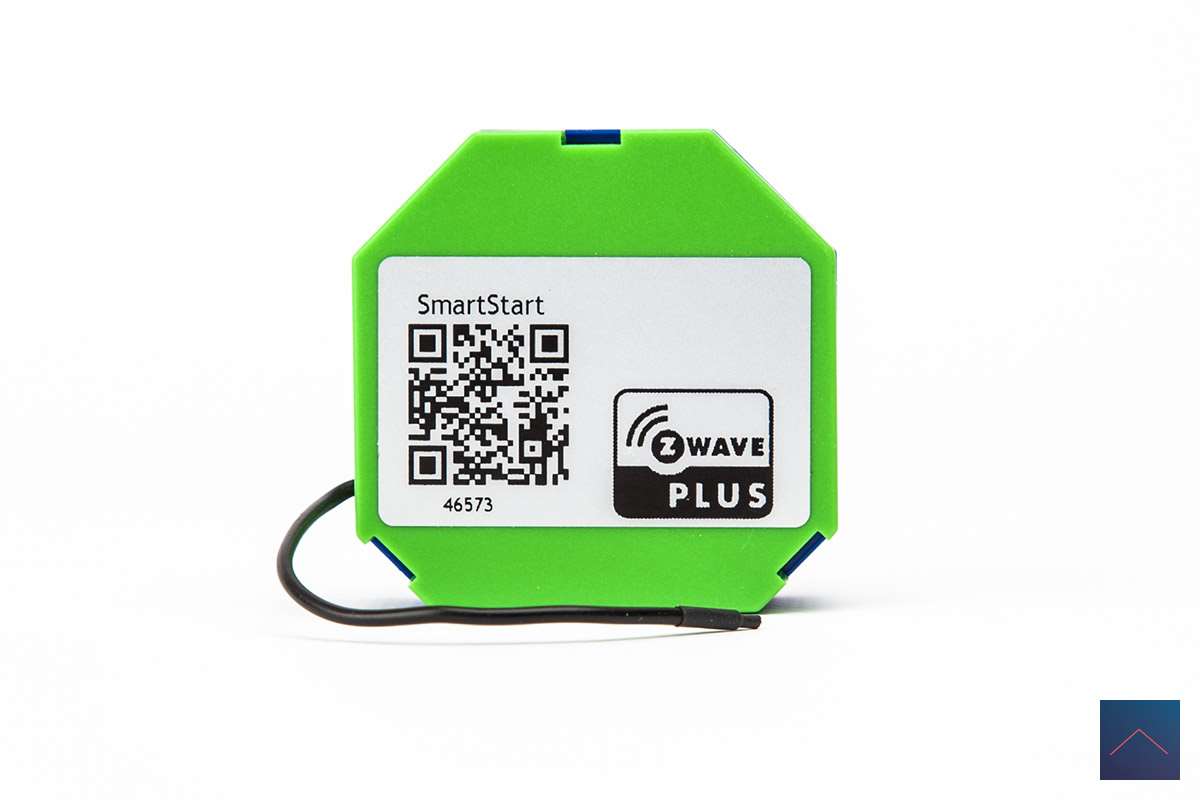

Appearance:

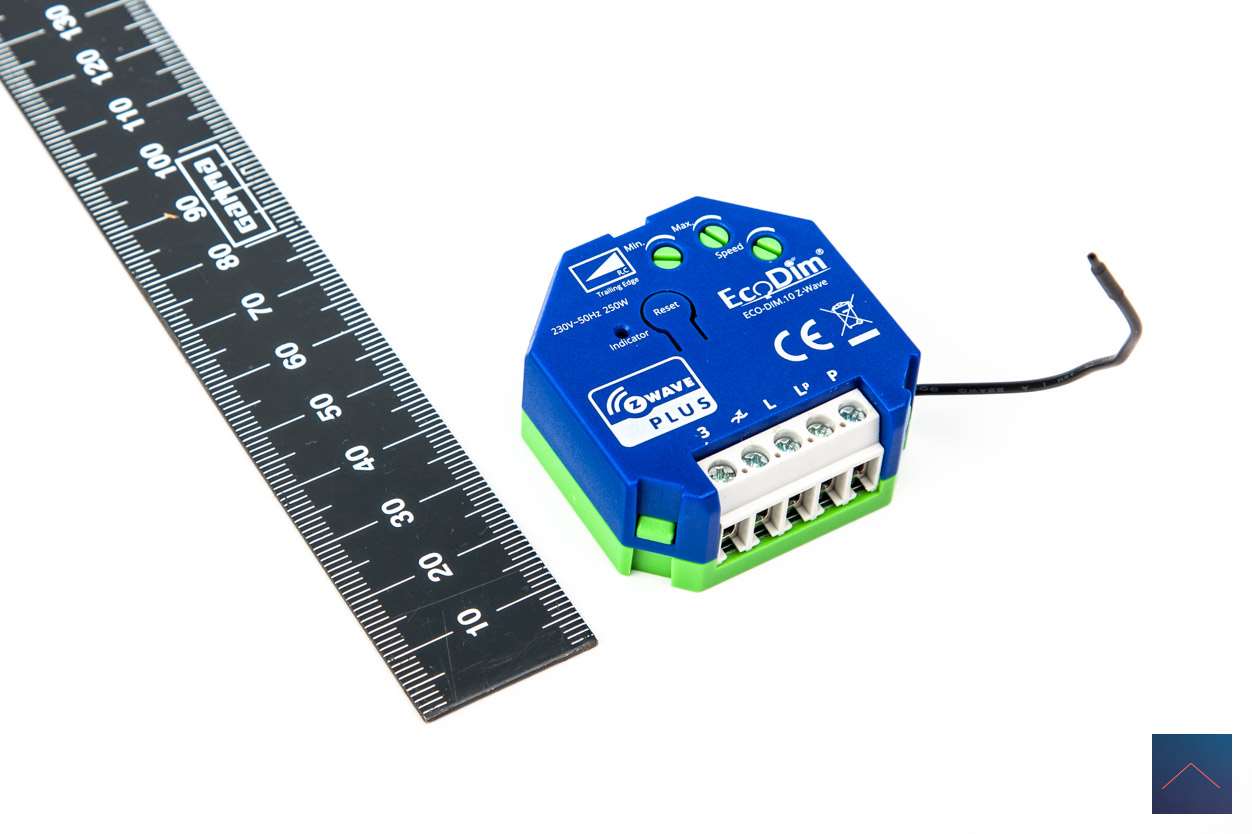

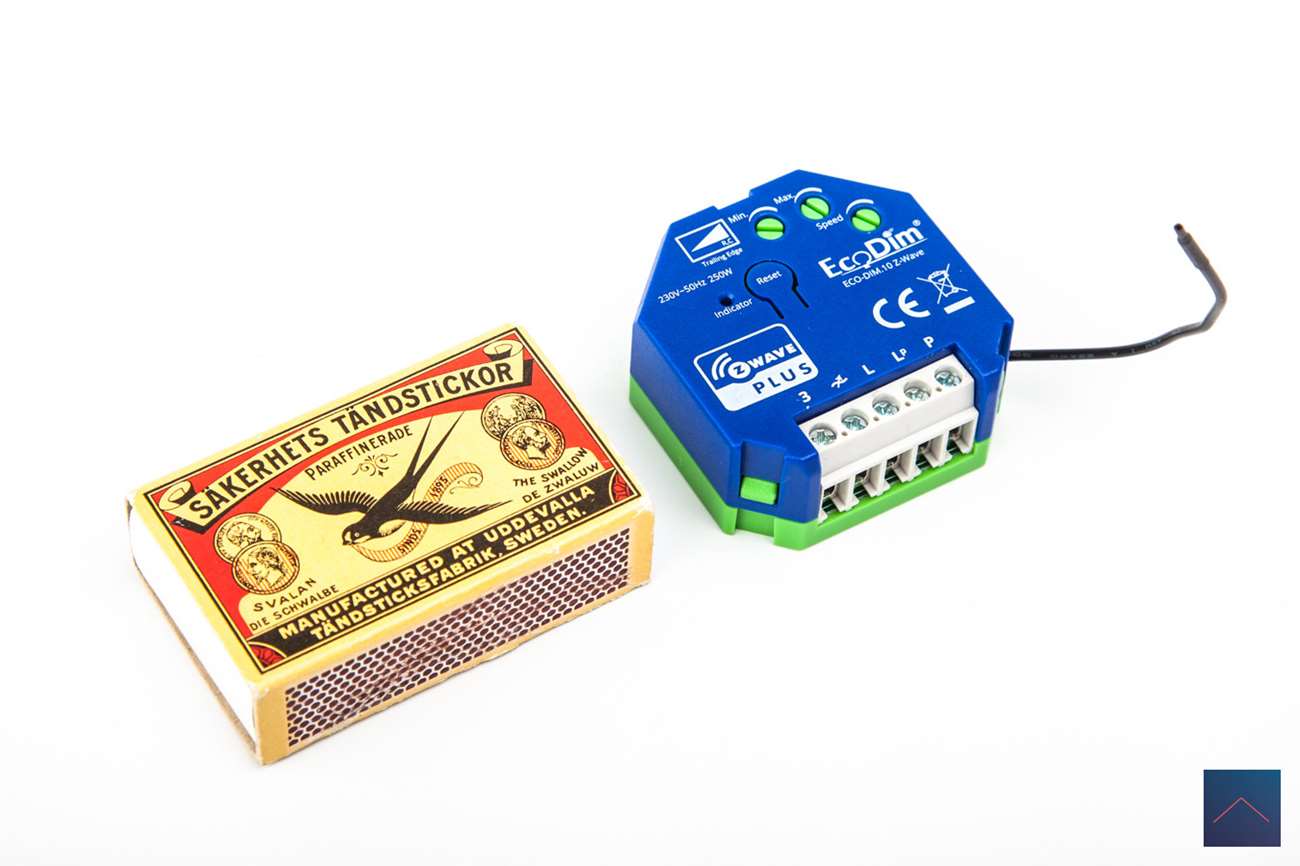

Size:

We will install this dimmer on the following controllers:

- Homey by Athom
- Zipato Zipatile
- Fibaro Home Center 2
- Vera Plus
- Domoticz (in collaboration with the Aeon Labs USB Z-Wave stick)
- Home Assistant (in collaboration with the Aeon Labs USB Z-Wave stick)

This product is for sale for:


€ 65
Buy

Author:
Niels Laan

Founder of this blog and passionate home automation nerd. All articles from Niels
