June 03, 2021 | Niels Laan | Eco-DIM, Built-in dimmer

Eco-DIM.10 - Smart LED Dimmer Module - Zigbee

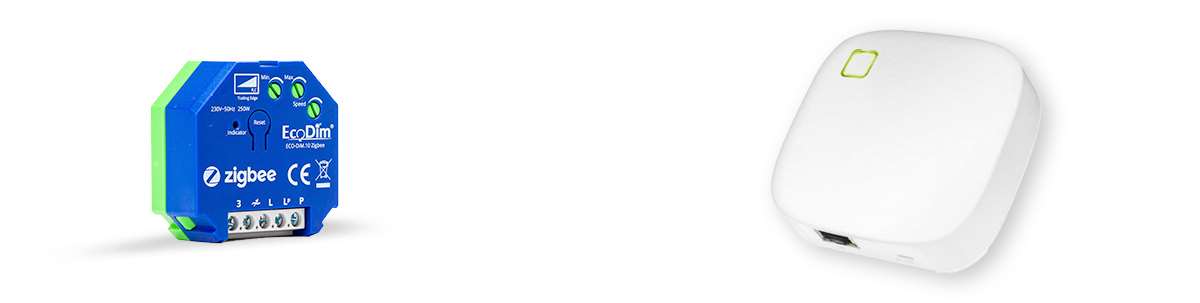

Installation on the Trust Z1/AduroSmart control station:

We are also going to install this dimmer on the Trust Z1 Zigbee control station/AduroSmart ERIA. The first step is to install the dimmer behind your existing switching material. Make sure you disconnect the power and connect the correct wires to the correct points according to the supplied diagram. You can connect it both 2 wire and 3 wire.

When the switch is connected and everything is closed again, we supply the dimmer with power and start the APP. You can add it by first going to a room and then pressing the plus icon at the top right. You then select "other brands" and "Zigbee lamp dimmable".

After this you have to check whether the LED on the dimmer is red or blue. If it is red you must first reset it, you can do this by holding the reset button for 10 seconds. If it is blue you can skip this step. To add it, press the reset button twice in succession. Then press search in the APP and after this it was found almost immediately and the LED on the dimmer will flash blue.

I can of course operate it (on/off and dimming).

Installation screens:

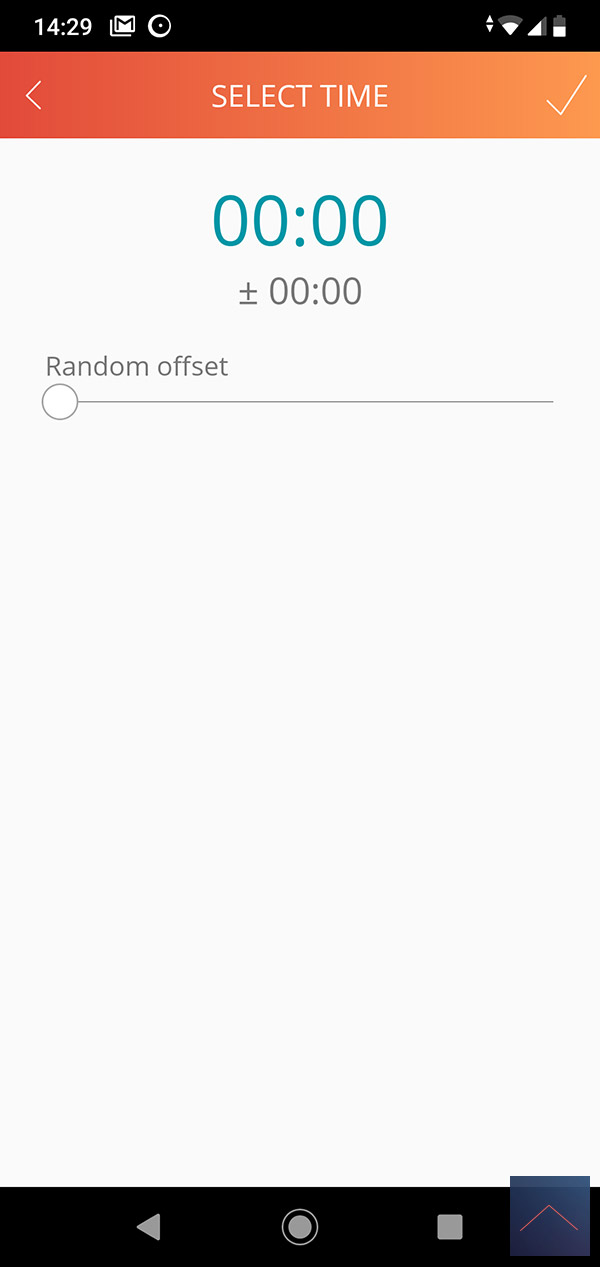

Example scene:

We ensure that the Eco-DIM is switched on when the sun goes down and that it also switches off automatically when the sun goes down. To do this easily, we use the timer wizard.

This product is for sale for:

€ 50

Niels Laan

Founder of this blog and passionate home automation nerd. All articles from Niels
