June 03, 2021 | Niels Laan | Eco-DIM, Built-in dimmer

Eco-DIM.10 - Smart LED Dimmer Module - Zigbee

Installation on the Zipabox/Zipatile:

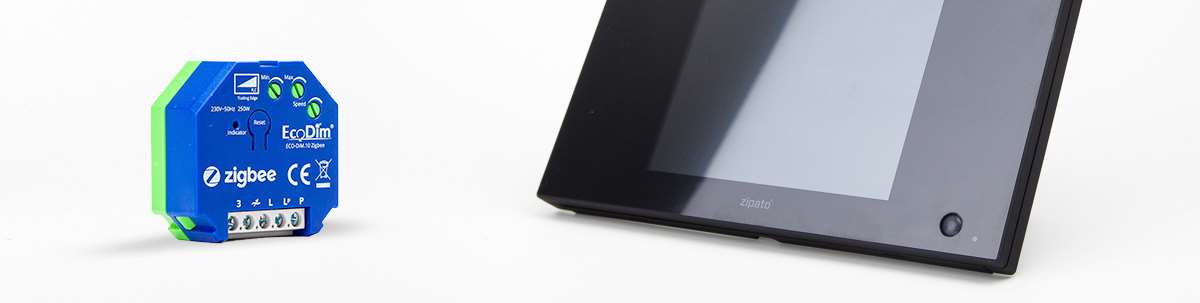

The second to last controller we will install it on is the Zipabox/ZipaTile. This shouldn't be very complicated. After all, the ZipaBox (with Zigbee module) and the ZipaTile both support the Zigbee protocols, so they must be compatible.

First we will install the dimmer in place. Make sure to disconnect the power and connect it according to the schematic. You can connect it with 2 or 3 wires. Finally, connect the switch and supply the whole with power.

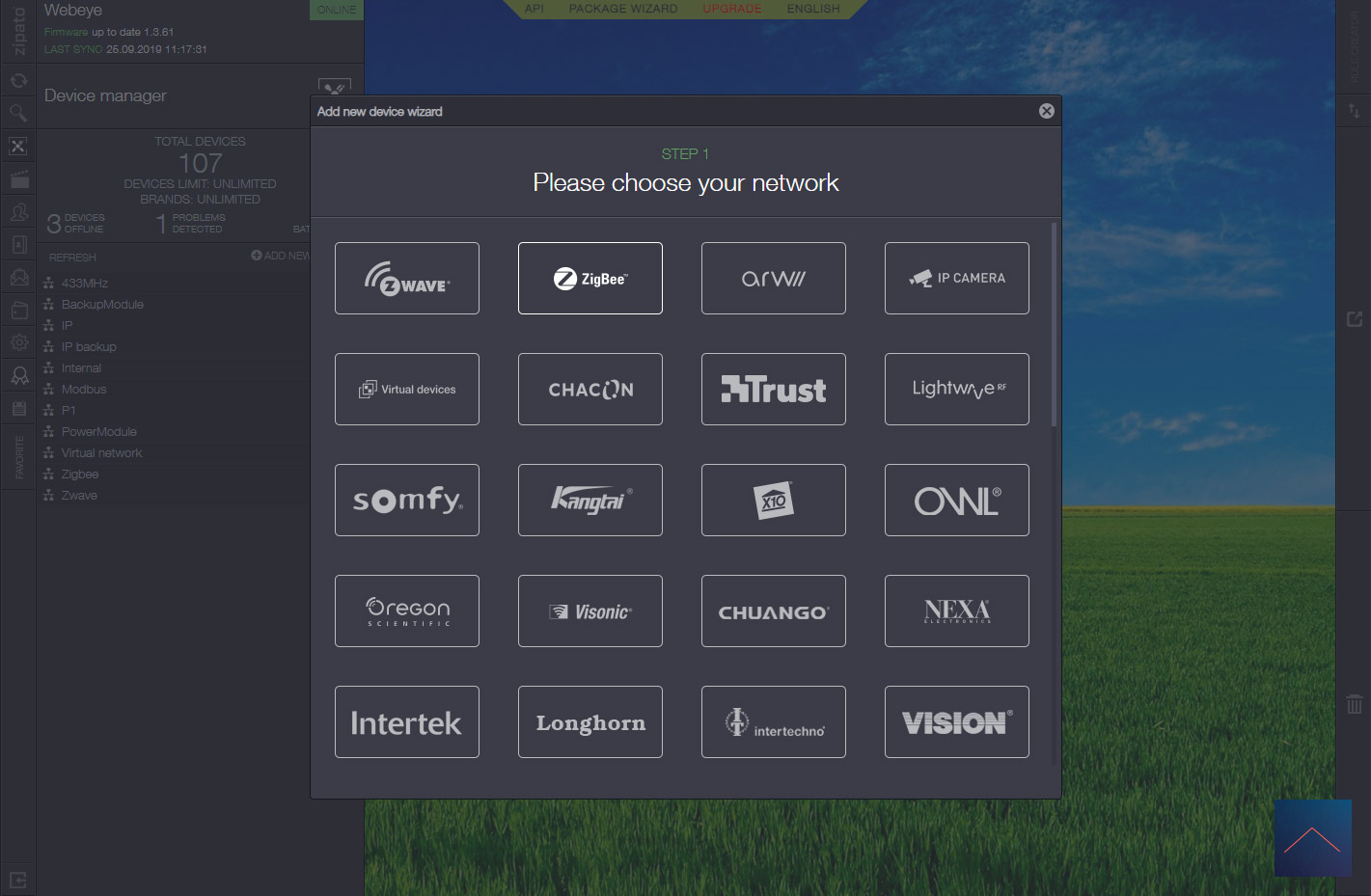

Go to the browser and then log in to the Zipabox and go to your devices. Click on "add new device" and then on Zigbee. If the LED on your dimmer lights up red, you must first reset the dimmer. You can do this by holding the reset button for 5 seconds. After this, the LED will no longer light up. If the LED is immediately blue, you do not need to reset it and you can skip this step. Then press the reset button 2x in succession. The LED will flash blue and stop flashing to indicate it is adding.

It was added but unfortunately I can't operate it.

Installation screens:
