April 29, 2020 | Niels Laan | Eco-DIM, Built-in dimmer

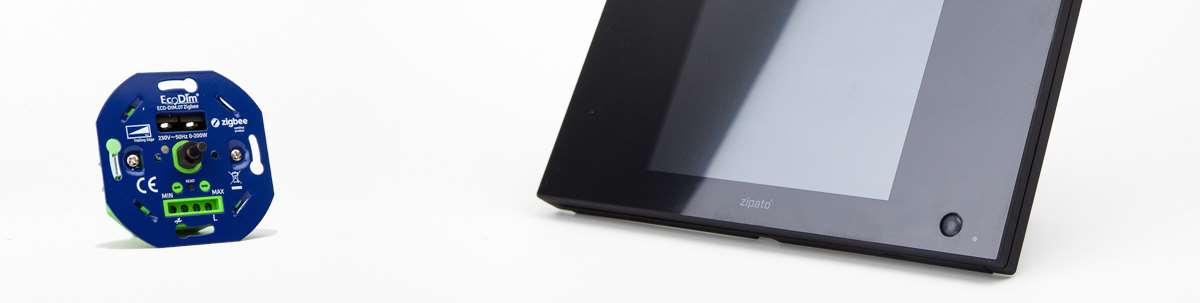

Eco-DIM.07 - Zigbee

Installation on the Zipabox/Zipatile:

Installing this dimmer on the Zipabox/ZipaTile shouldn't be very complicated. After all, the ZipaBox (with Zigbee module) and the ZipaTile both support the Zigbee protocol so must be compatible. Be the first to remove the old dimmer. Small tip take the power off before you start. Once you have done this, connect the Eco-DIM according to the supplied diagram. Please wait here before turning the power back on.

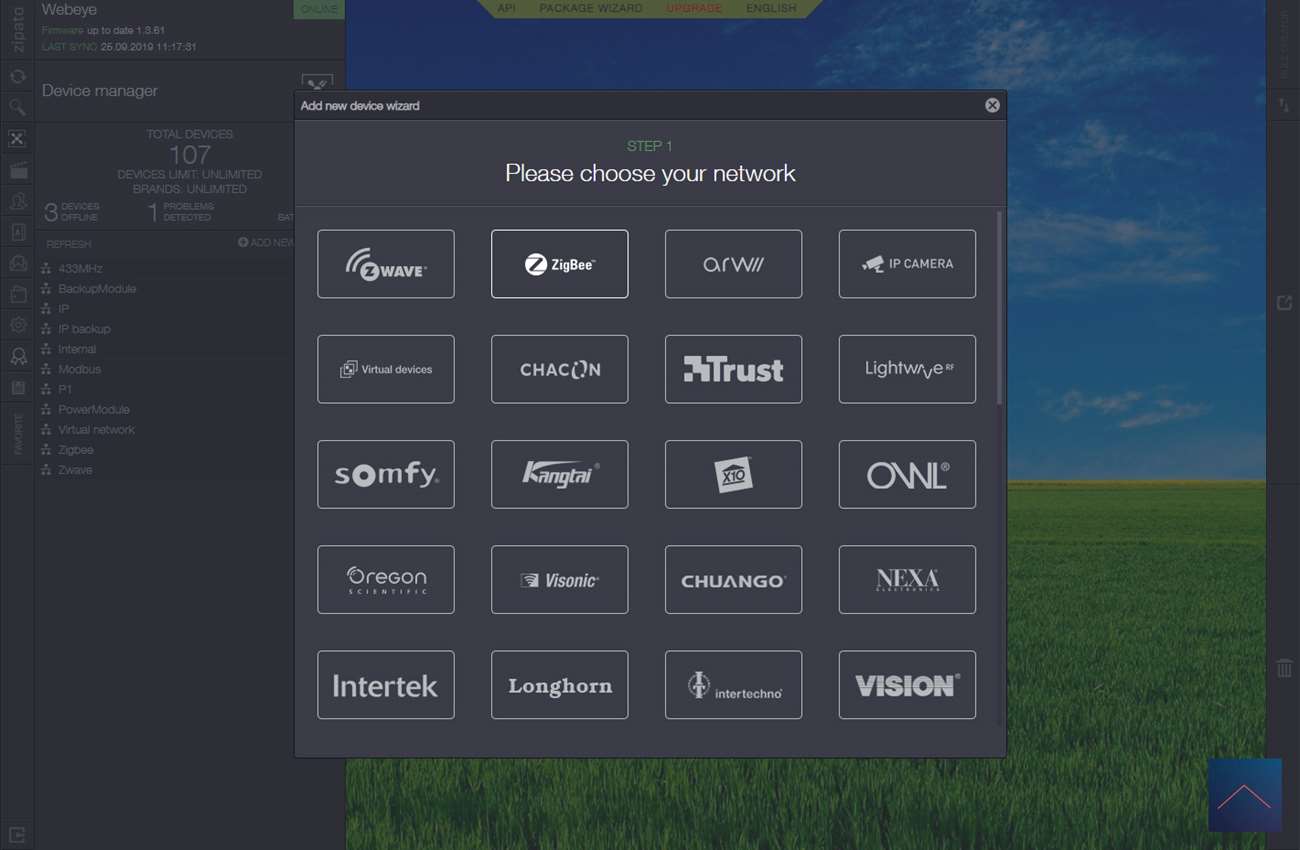

Then log in to the Zipabox and go to your devices. Click on "add new device" and then on Zigbee. Now go back to the dimmer and supply it with power. If the LED on your dimmer lights up red, you must first reset the dimmer. You can do this by pressing the reset button for 5 seconds. After this the LED will no longer light up. If the LED is blue immediately, you do not need to reset it / you can skip this step. Then press the reset button 2x in succession. The LED will flash blue and stop flashing to indicate that it is adding.

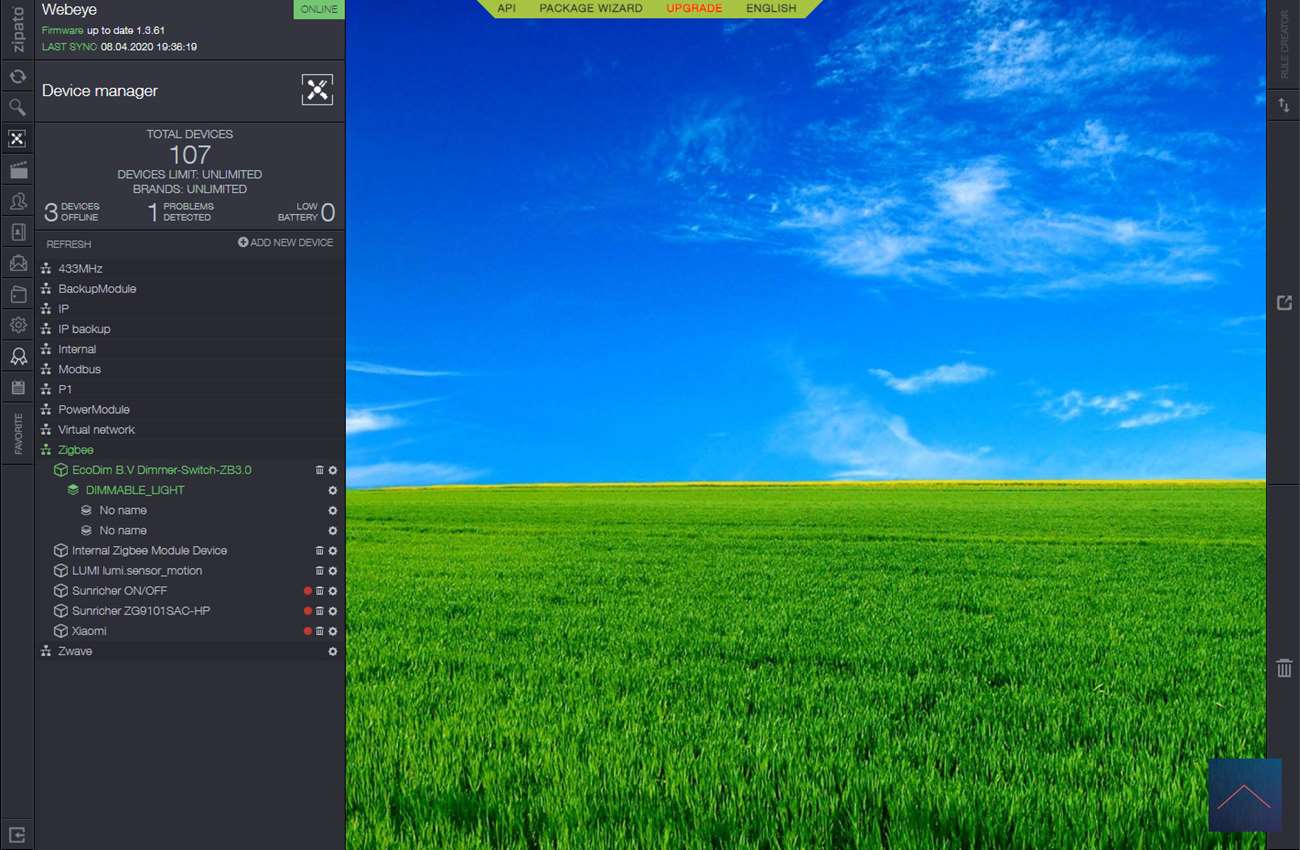

It has been added but unfortunately I cannot operate it.

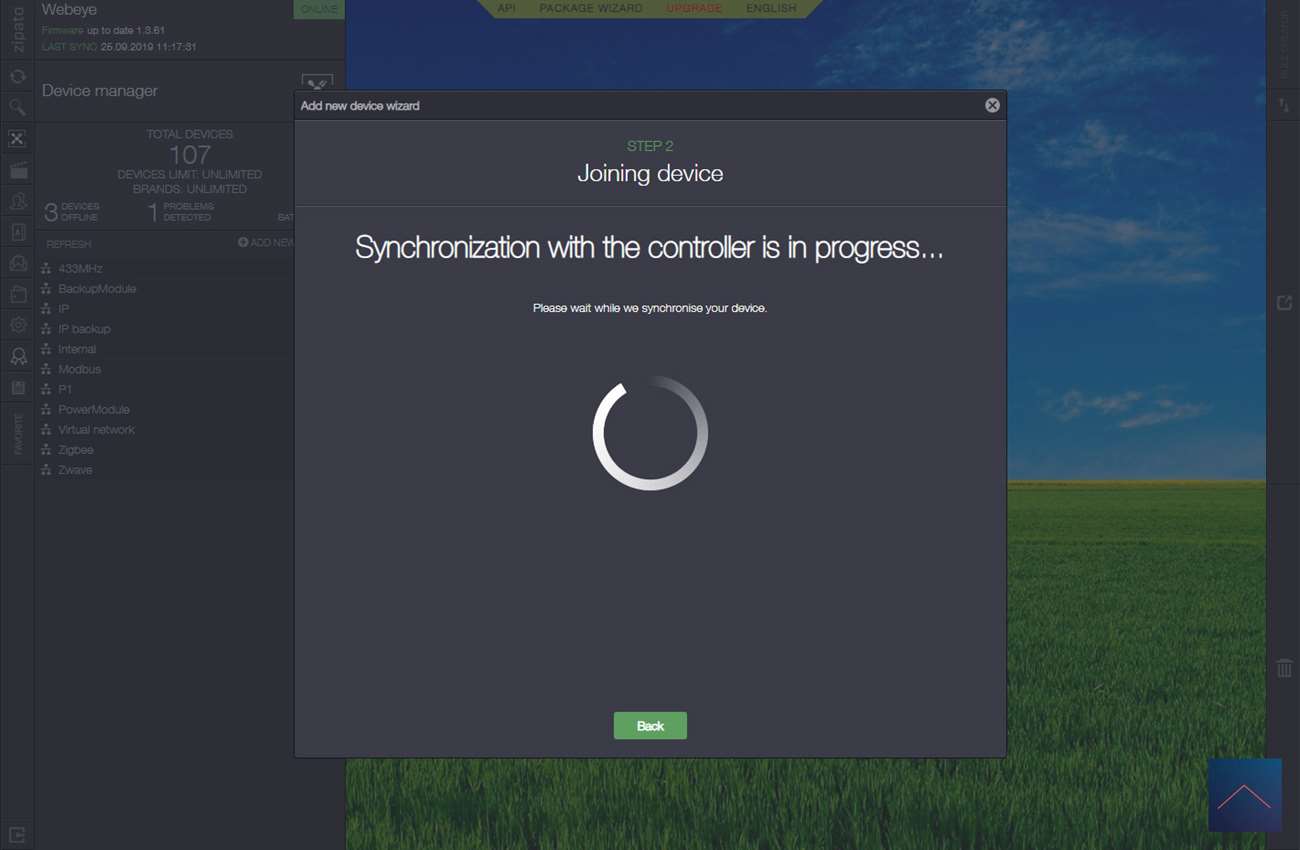

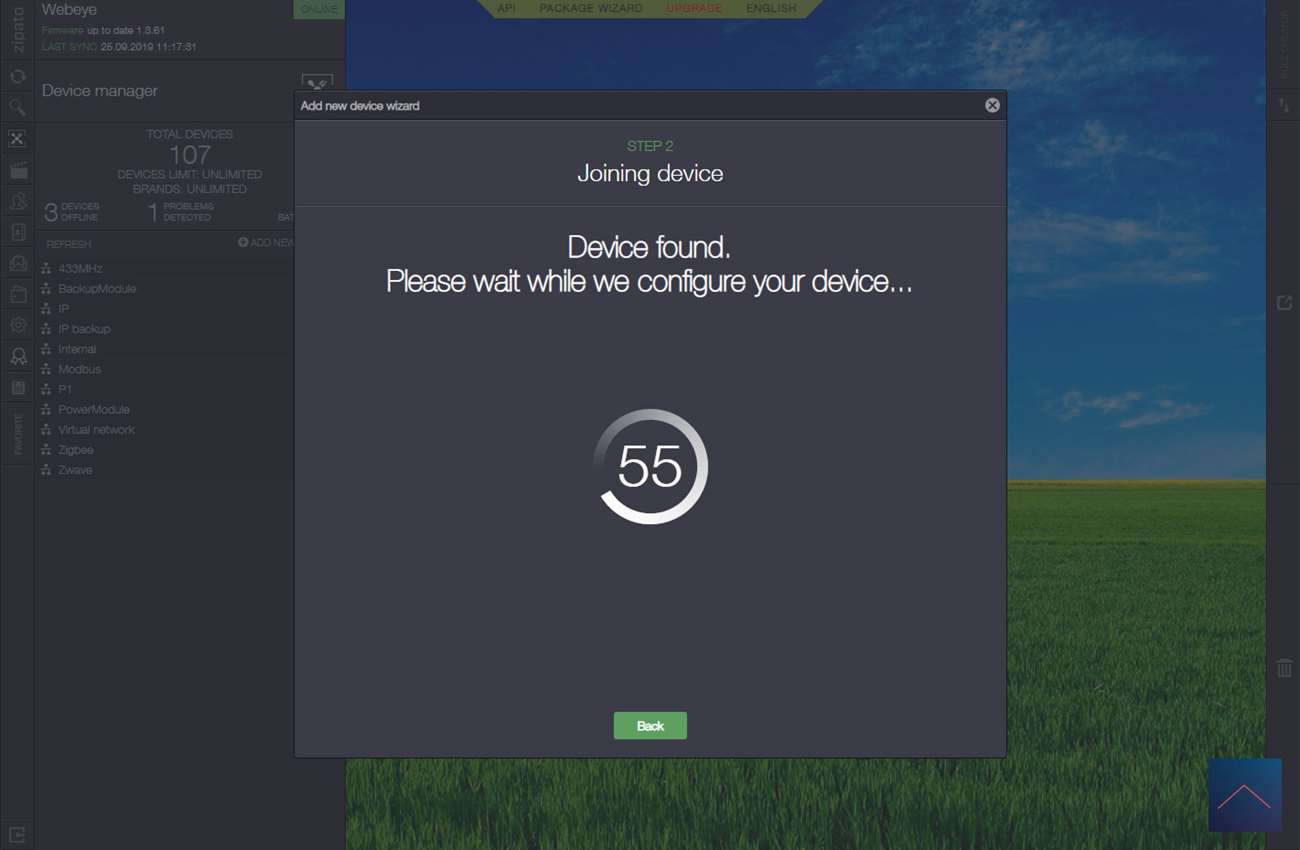

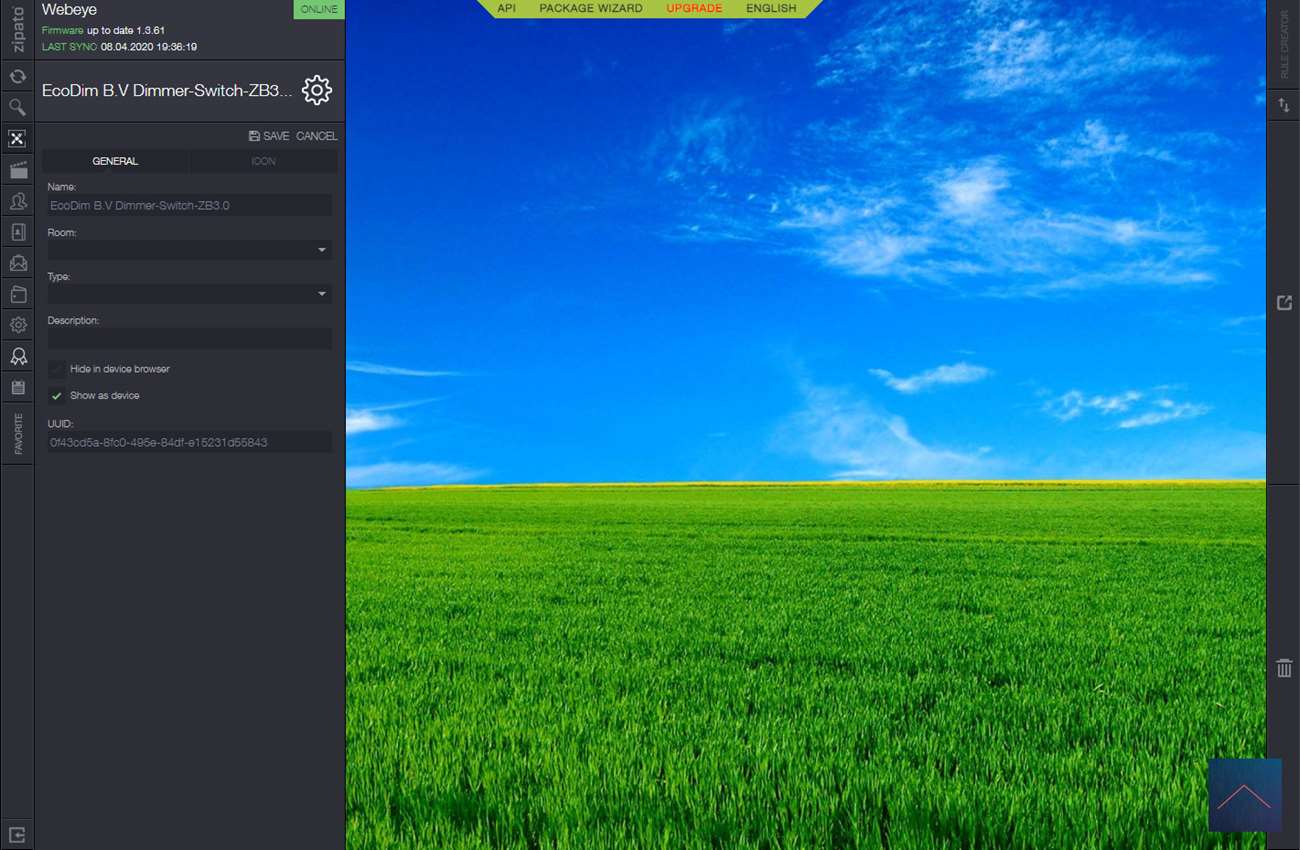

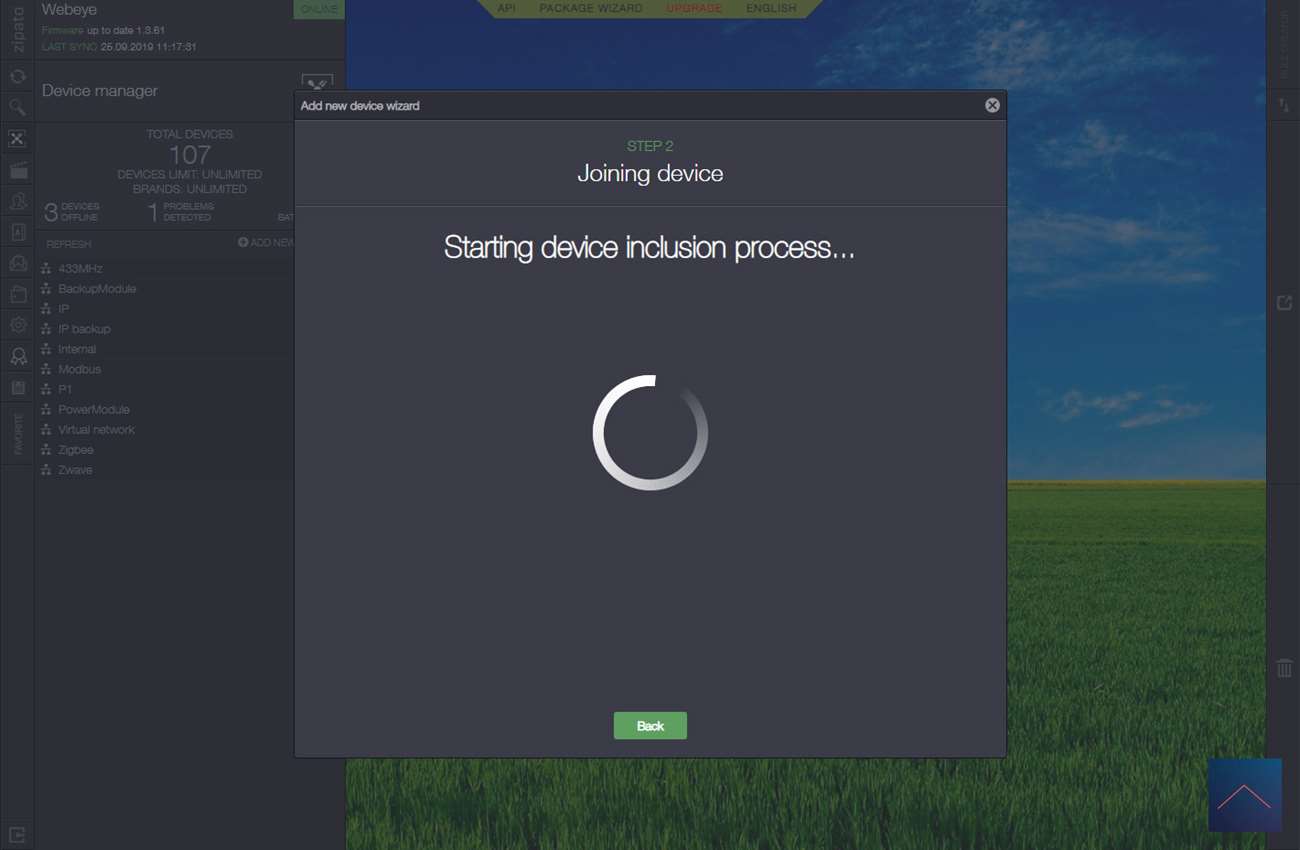

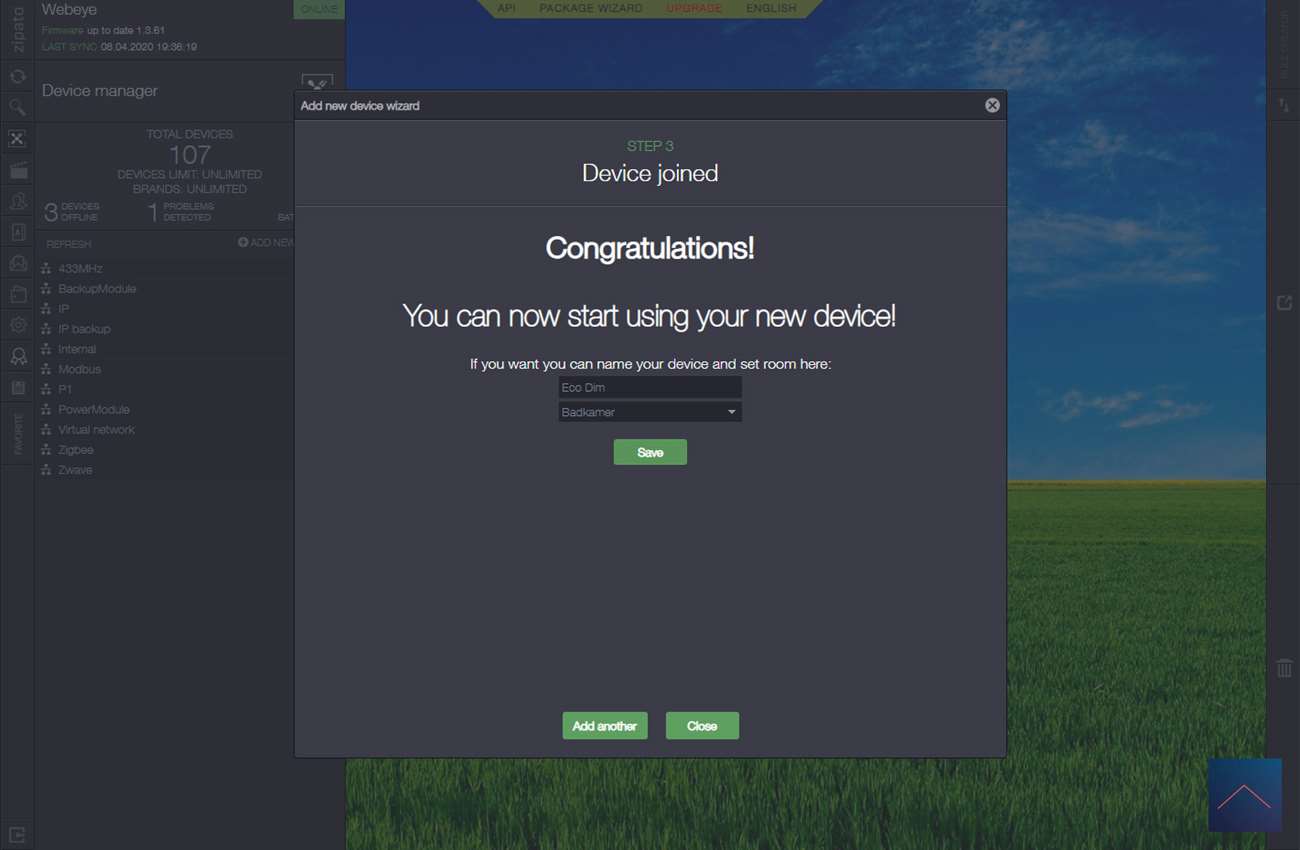

Installation screens:

This product is for sale for:


€ 100
Buy
;
;
