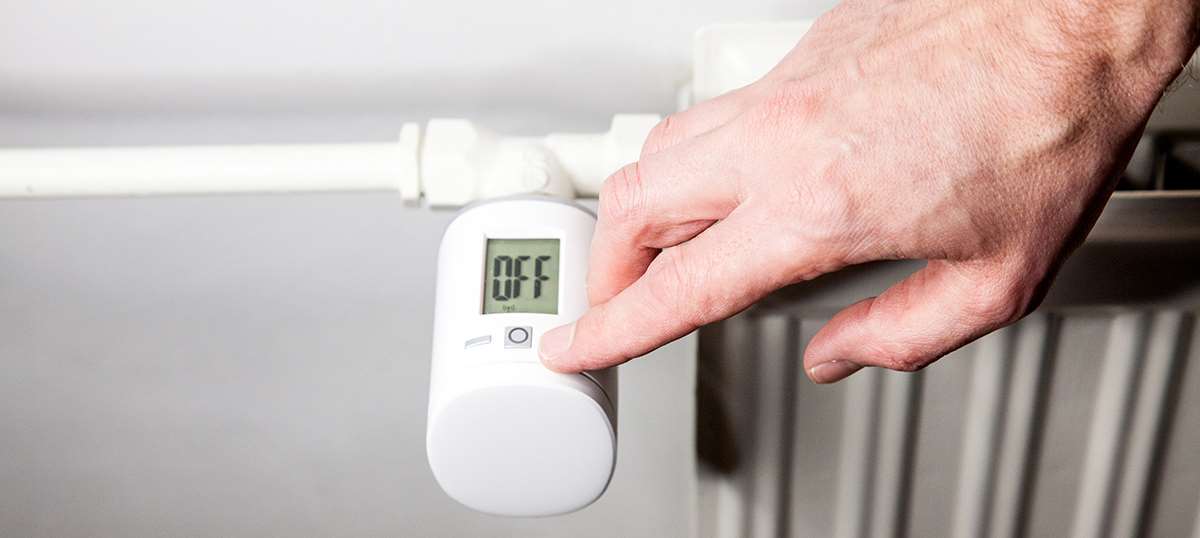

Eurotronic Spirit Thermostatic valve - Z-Wave Plus

Parameters:

With parameters you can change things from, for example, the sensor. Such as the update time and sensitivity of the motion sensor. Most controllers have this integrated as standard.

1) Invert LCD Display
Default setting: 0
Available setting: 0 (Off), 1 (On)

2) LCD timeout
Default setting: 0
Available setting: 0 (Off), 1 (On)

3) Backlight
Default setting: 0
Available setting: 0 (Off), 1 (On)

4) Battery status
Default setting: 0
Available setting: 0 (Only as system notification), 1 (1x per day)

5) Temperature reporting
Default setting: 0 (with 0.5 change)
Available setting: 0 (Only when the tap opens), 50 (per 0.5 (0.1 5.0))

6) Tap stand reporting
Default setting: 0
Available setting: 0 (off), 1 (1%) to 100 (100%)

7) Window opening detection
Default setting: 2
Available setting: 0 (Off), 1 (Low), 2 (Medium), 3 (High)

8) Offset temperature measurement
Default setting: 0 (with 0.5 change)
Available setting: - 50 (-5.0 ° C) - 50 (+ 5.0 ° C), 128 (external sensor)



;
;
