Review:

January 02, 2020 | Niels Laan | Qubino, Built-in dimmer | 1

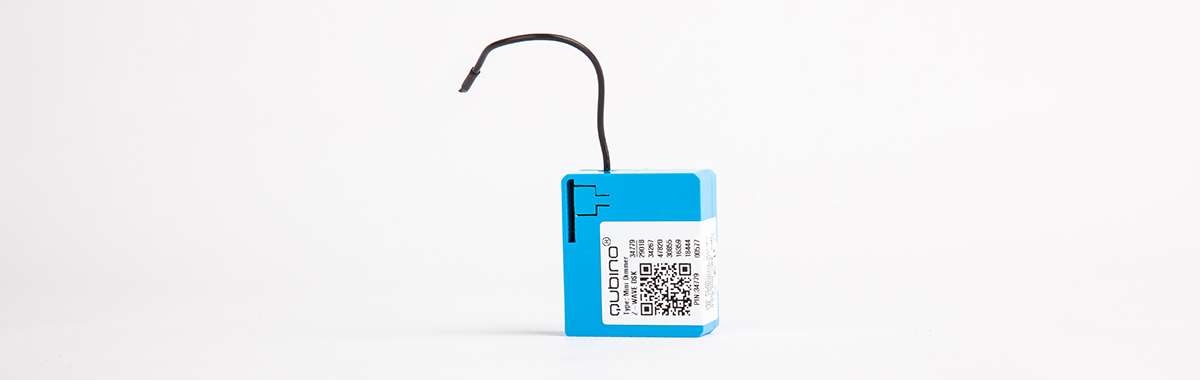

Qubino Mini Dimmer

Parameters:

With parameters you can change things from, for example, the sensor itself, such as the update time and sensitivity of the motion sensor. Most controllers have this integrated as standard.

1) Switch type
Default setting: 0
Available setting: 0 (Pulse), 1 (On / Off (toggle))

5) Device appearance
With these settings you can determine how the dimmer is shown in your controller.

Default setting: 0
Available setting: 0 (Dimmer), 1 (On / off - only works with 3 wires)

11) Switch off automatically
Default setting: 0
Available setting: 0 (Disabled), 1 - 32536 Sec (turns off automatically after this time)

12) Switch on automatically
Default setting: 0
Available setting: 0 (Disabled), 1 - 32536 Sec (turns on automatically after this time)

21) Double click functionality
Default setting: 0
Available setting: 0 (Off), 1 (On)

22) Recovery status after power loss
Default setting: 0
Available setting: 0 (Last status), 1 (Don't remember status)

40) Flow level reporting
Setting to determine how much change in the energy level a report should be sent to the controller.

Default setting: 0 (Off)
Available setting: 1 - 100 (Percentage)

41) Current measurement period
Default setting: 0 (Off)
Available setting: 1 - 32676 (Second)

60) Minimum intensity level
With this you can raise the minimum level of dimming. This is useful if your lamp is flickering at a low dim setting.

Default setting: 1%
Available setting: 1 - 98%

61) Maximum intensity level
With this you can bring the maximum level of dimming low.

Default setting: 99%
Available setting: 1 - 99%

65) Manual dimmer step time with on/off
With this you can set the number of steps/time per how much the lamp dims less / more.

Default setting: 1
Available setting: 1 - 127 sec

66) Manual dimmer increments hold time
Default setting: 3 (3 sec)
Available setting: 1 - 127 (1 sec), 128 - 256 (1 min> 126 min)

67) Ignore start level
Default setting: 0
Available setting: 0 (On), 1 (Off)

68) Dim duration
Default setting: 0 (according to parameter 66)
Available setting: 1 - 127 (1 sec)

70) Overload protection
Default setting: 200
Available setting: 1 - 200 (W), 0 (not active)

14) Autocalibration trigger
Default setting: 0
Available setting: 0 (Na supplied with power and "exclusion"), 1 (Na supplied with power), 2 (Always start)
